SCM si 400es - ready- 1ph

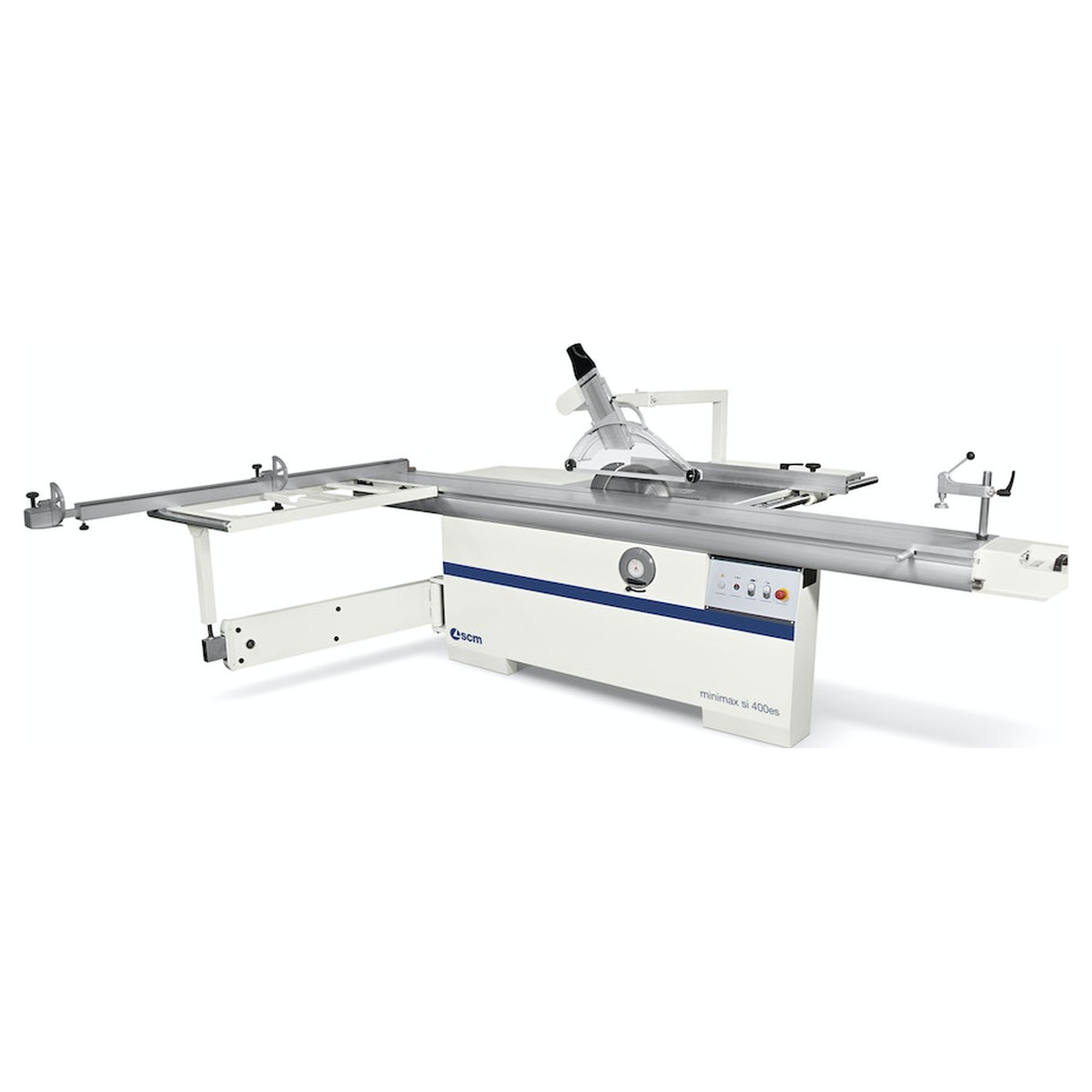

The minimax si 400es is the professional circular saw with tilting blade perfect for those who requires quality without compromises, precision and smoothness.

Perfect and easy cuttings of veneer panels and thick solid wood material are ensured by the cast iron saw unit composed by a rigid closed loop structure and a scoring blade unit.

The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. An optimal support is given also to larger pieces thanks to the sliding table 360 mm wide.

KEY ADVANTAGES

SOLID AND STURDY STUCTURE

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut. The closed ring structure eliminates any vibration and guarantees perfect alignment of the blades even during inclined and heavy cuts.

UNRIVALLED CUTTING FINISHING

The sliding table ensure an optimal support also to larger pieces. The sliding carriage with guides is secured with a procedure for aluminium riveting.

IMMEDIATE CONTROL

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm and for miter cuts at up to 45° on both sides of the frame.HIGH-TECH DEVICES

Wide range of high-tech devices to make your Elite S even more powerful and personalized, like the start/stop pushbuttons for the main blade and scoring blade integrated in the sliding carriage

PRODUCT DETAILS

STANDARD EQUIPMENT

• Optimizer/Sequencer App for Tablet: SCM Thundercut
• Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems.
• It can be activated using the QR code supplied with the machine. The App allows to:
• manage your machine stock and the material and panel magazine
• create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
• optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
• set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
• print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
• Ergonomic handweels for blade unit height and tilt
• Readout of sawblades tilt on the machine front side
• Cast iron saw unit with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side trunnions
• Independent powered scoring unit with external setting
• Scoring unit adjustment: vertical and horizontal adjustments are carried out by user-friendly mechanical levers with precise and smooth movements.
• These adjustments can be easily operated from the front of the machine.
• Handweel with readout of sawblades tilt in front of the machine
• Extruded anodized aluminum sliding table (dimensions 360 x 3200 mm)
• sliding on high precision hardened steel guideways secured by riveting
• Squaring frame (1200 x 650 mm) with:
• swinging arm support
• idle roller to facilitate the panel loading/unloading

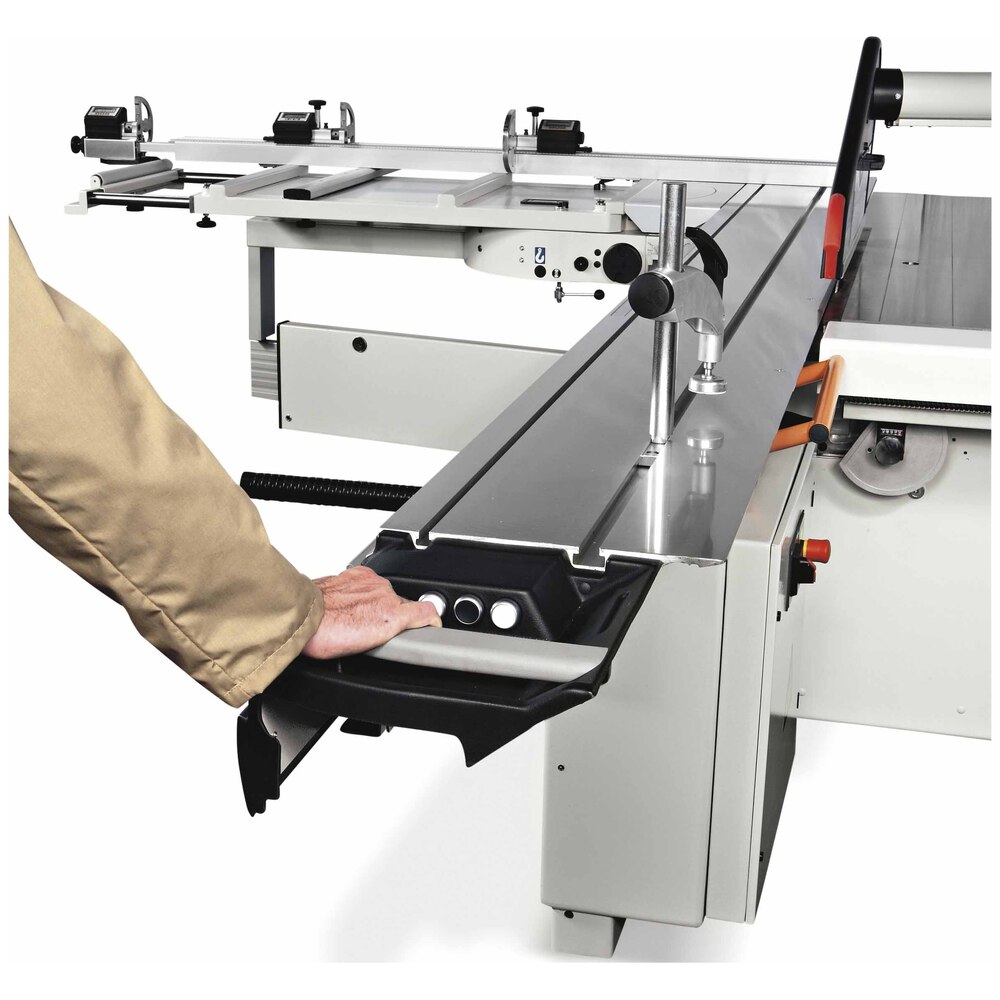

• Telescopic squaring fence with:
• 2 flip-over stops
• Metric/imperial rule tilted towards the operator

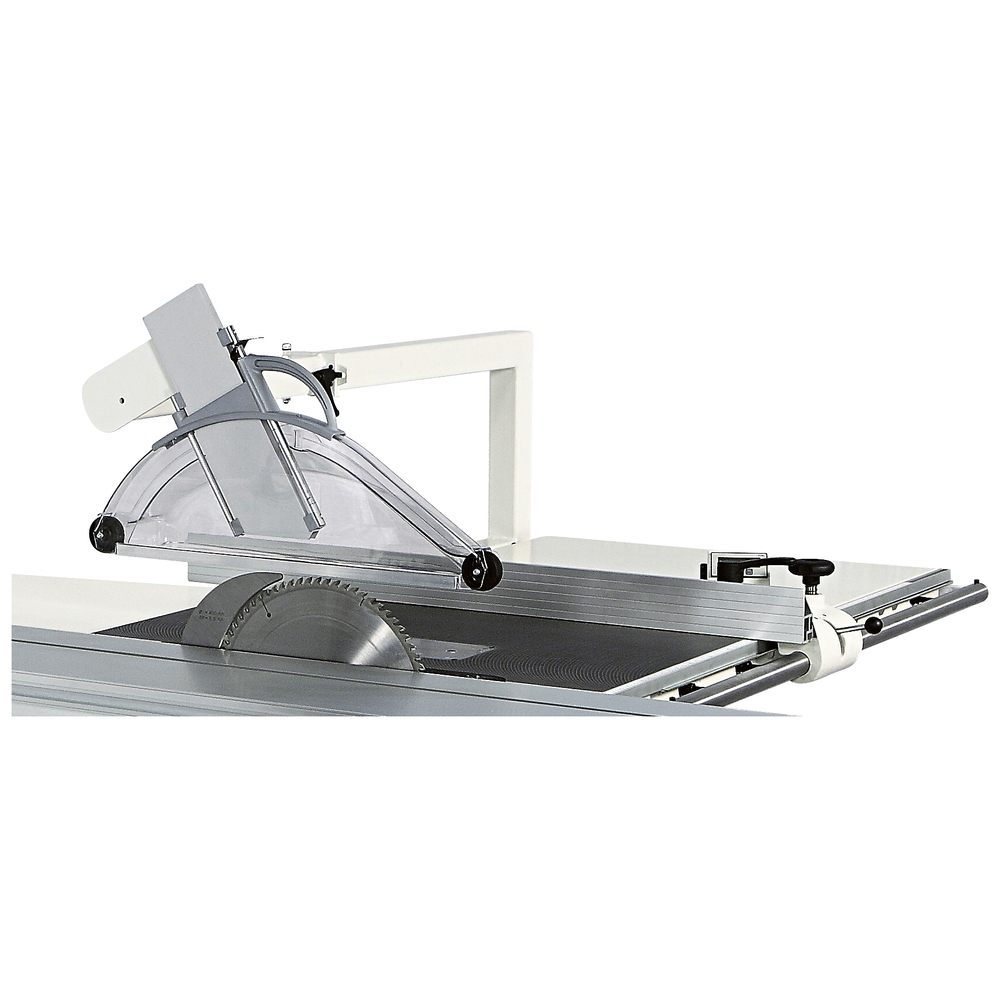

• Overhead blade protection
• Eccentric clamp

SAFETY/PROTECTIONS

• self-braking motor
• overhead blades guard
• Emergency pushbutton located on the front machine side
•

TOOLING INCLUDED

• 1 main blade (57.04.17 - Saw blade 400 mm)
• 1 scoring blade
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
•


*Does not include power cable

SPECS

TECHNICAL SPECIFICATIONS

cast iron worktable dimensions

940 x 560 mm (37” x 22”)

Main blade motor power

4.8 HP – 3.6kW

Max. saw blade diameter (with scoring blade installed)

400 mm (15.69”)

Saw blade arbor size

25.4 mm (1”)

Scoring blade motor power

~ 1 HP

Scoring blade diameter

120 mm (4.69”)

Scoring blade arbor size

20 mm (0.75”)

Diameters to be used simultaneously

400 x 120 mm (15.69” x 4.69”)

Main blade speed

4000 rpm

Scoring blade speed

9200 rpm

Blade tilting

90° ÷ 45°

Max. cutting height at 90°/45° (with 400 mm blade)

136 / 97 mm (5.31” / 3.81”)

Max. squaring stroke

3200 mm (10.5’)

Cutting width on parallel fence

1270 mm (50”)

Exhaust outlets diameter:

Frame outlet

Overhead guard

120 mm (4.69”)

 80 mm (3.12”)

Installation requirements

 Nominal extraction air consumption

1647 m3/h (955 CFM)

Compressed air

6.5 bar

Air exhaust speed

20 m/s (66 ft/s)

Electrical requirements

***subject to change; must be verified prior to installation***

220 V – 60 Hz – single phase – 26 A
