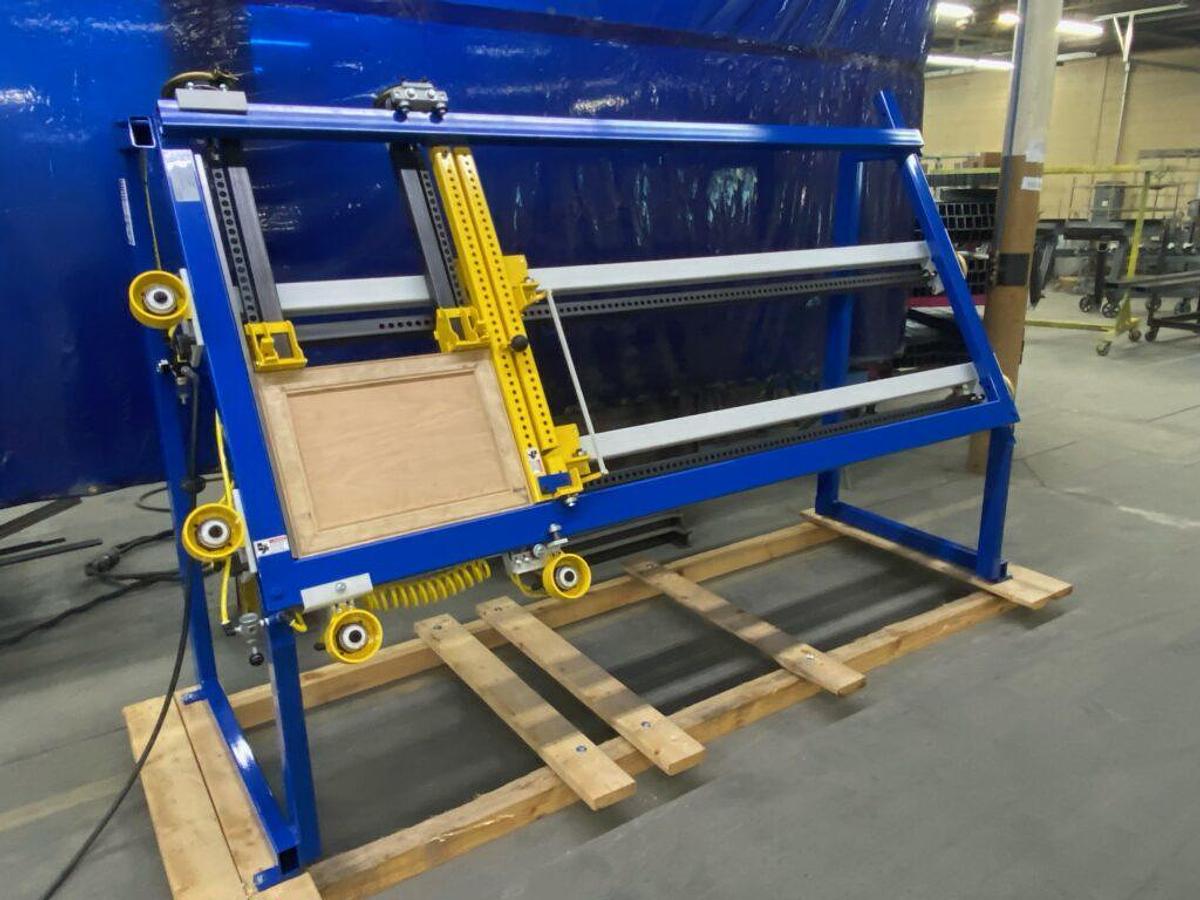

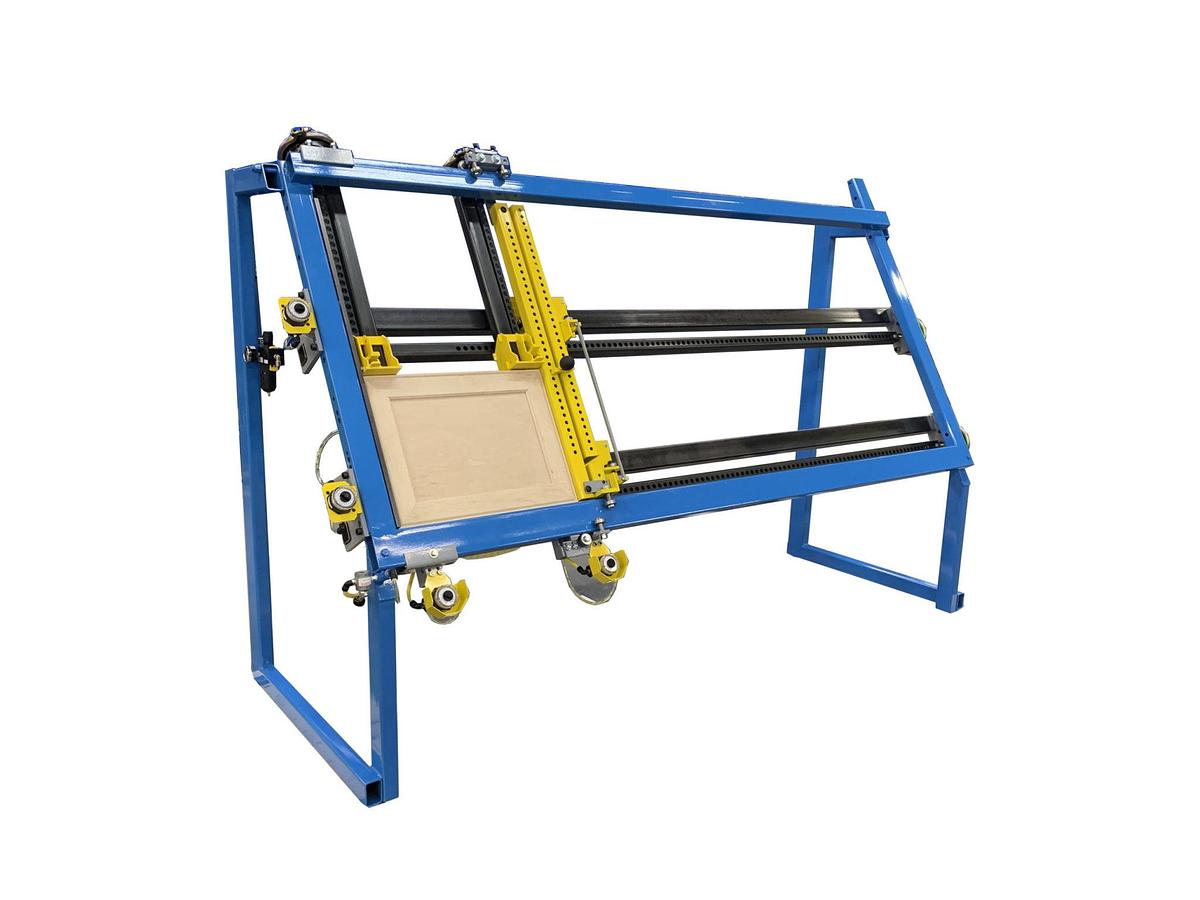

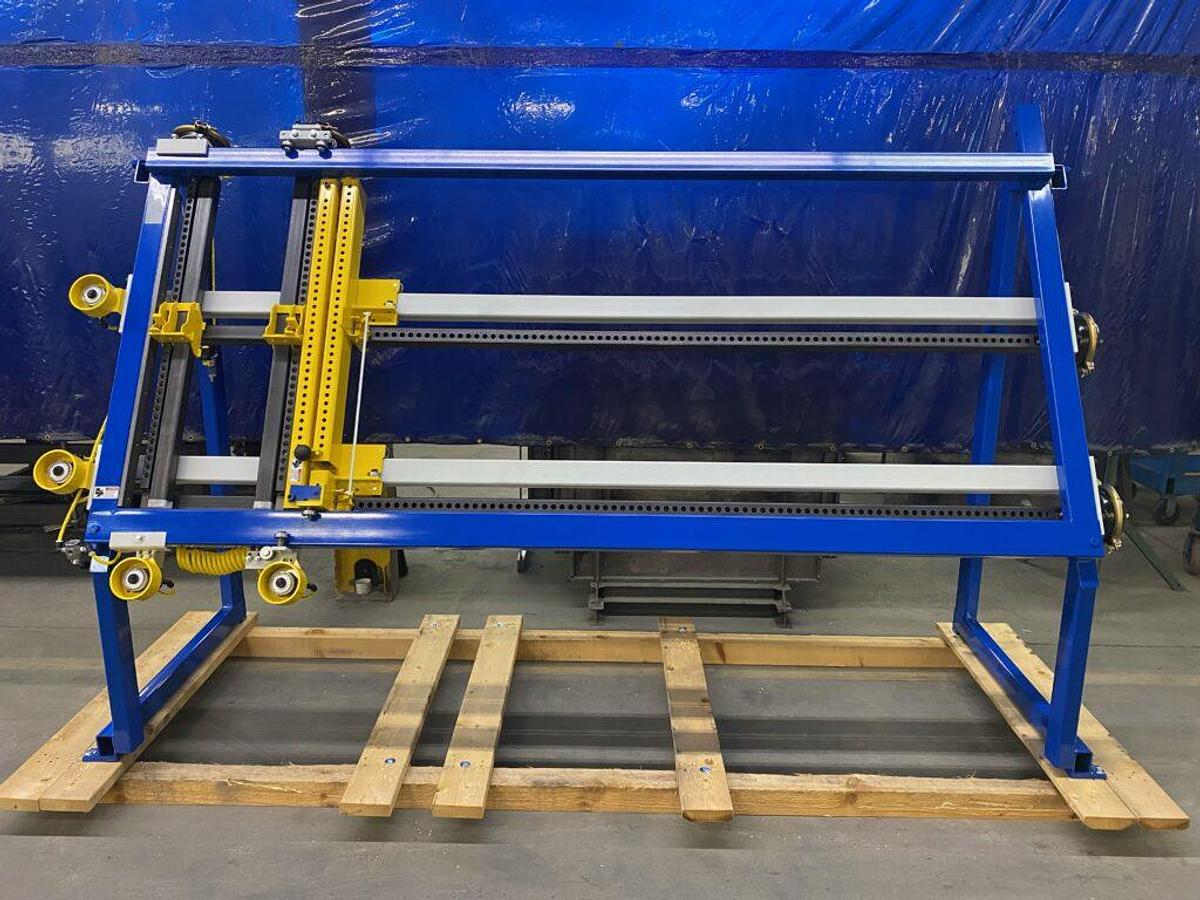

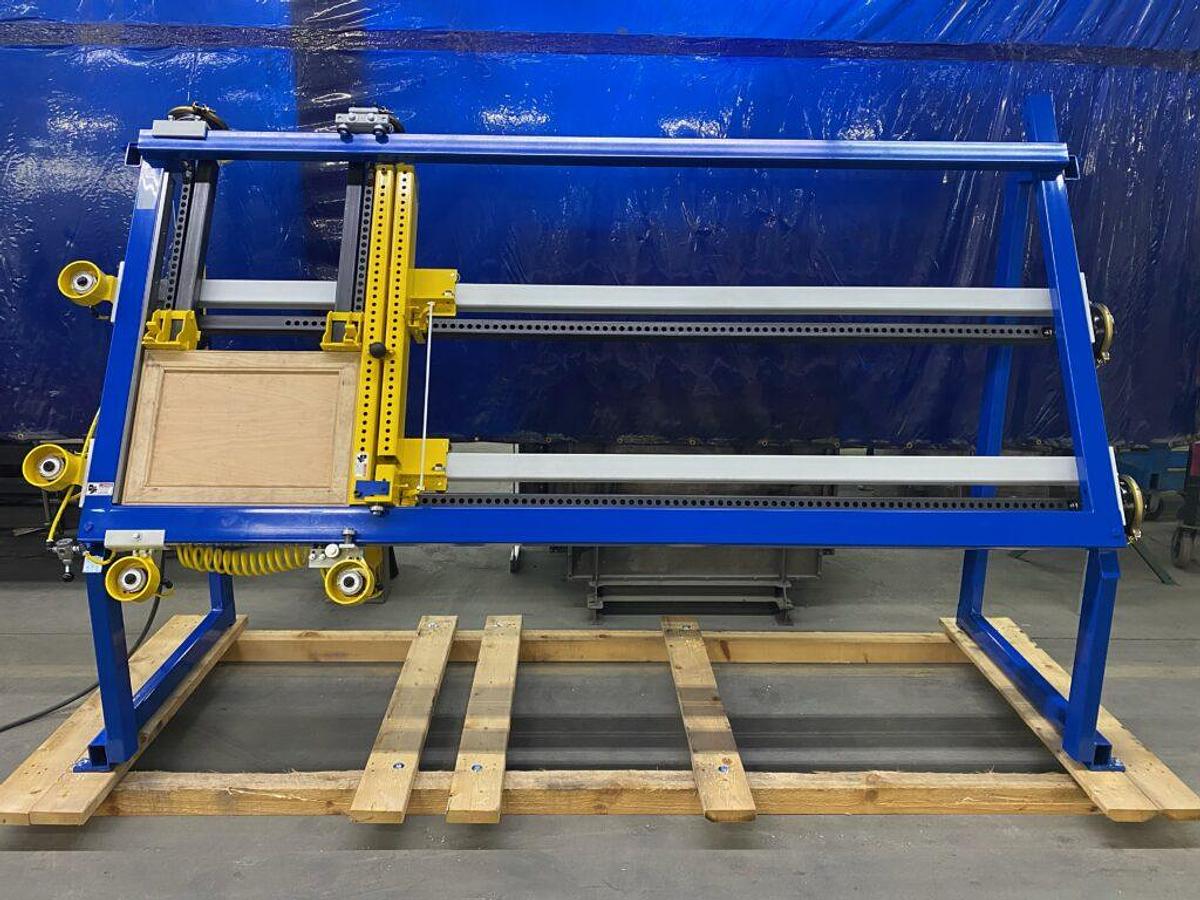

#717C-LM – Large Single Miter Door Clamp

Accurately Clamp, Square and Adjust Your Miter Joints

The JLT Large Single Miter Door Clamp brings dial-adjustable corner pressure to doors up to 38″ W × 96″ L, which covers tall pantry and full-height doors that won't fit a standard miter clamp. Every clamp has its own dial regulator. Dial the pressure in or out at any corner to close up a stubborn miter joint, even while the door is under clamping pressure. Heavy-duty jaws put that pressure right where the joint is, and every JLT Door Clamp is pre-squared at our Poughkeepsie, NY factory. The JLT Trident Pin System handles changeovers between door sizes, and the clamp squares stile-and-rail, MDF, and HDF doors as well as miter doors.

Features

Precision Corner Adjustment

• Dial regulators: "dial" pressure in or out to adjust each corner, even under clamping pressure

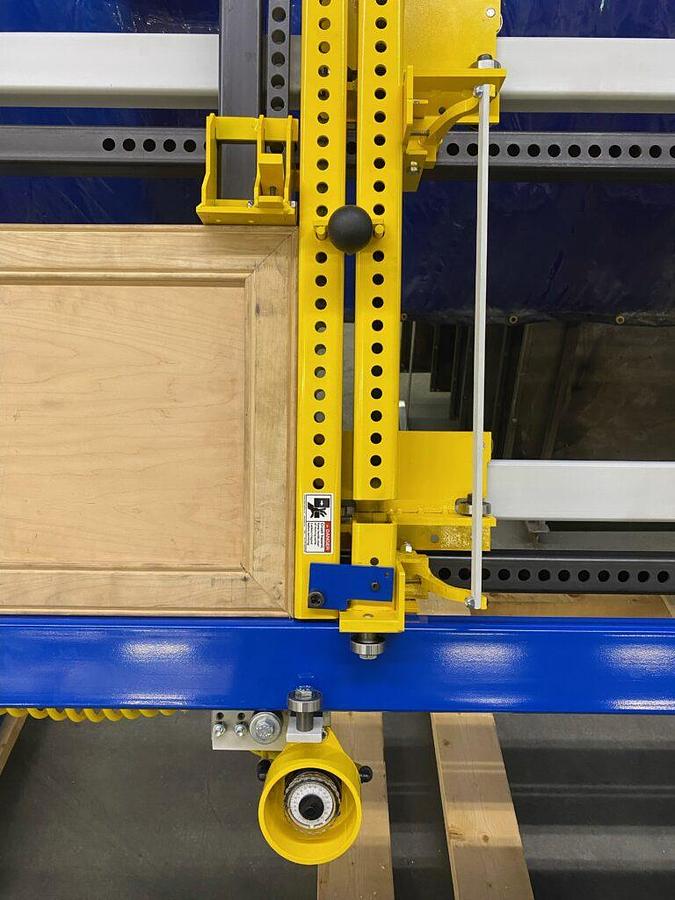

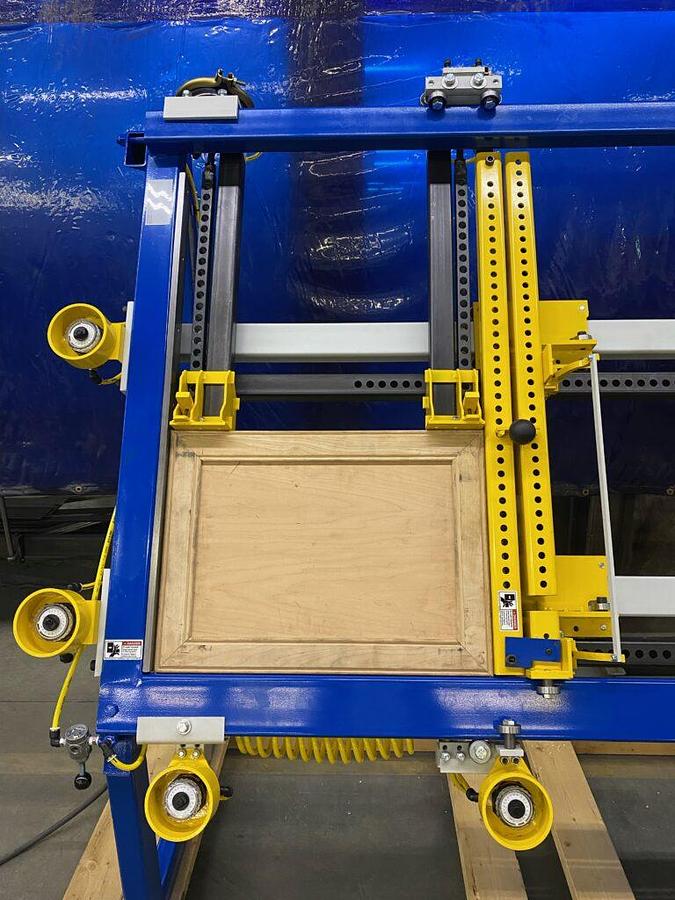

• Heavy-duty jaws bring pressure directly to the corners for precise adjustment of tricky miter joints
• Guaranteed square: every JLT Door Clamp comes pre-squared from our factory

Capacity and Setup

• 38″ W × 96″ L maximum capacity
• Includes (2) vertical and (2) horizontal clamps
• JLT Trident Pin System for quick changeovers between door sizes (the pin sits at the top of the door)
• Single lever valve air activation

Door Types

• Clamps and squares miter and stile-and-rail doors
• Clamps and squares MDF or HDF doors too, with an optional UHMW Border Kit to protect the door

Warranty and Origin

• Complete 3-year warranty
• Made in the USA, Poughkeepsie, NY

Machine dimensions

Width: 120″ · Height: 76″ · Depth: 42″
