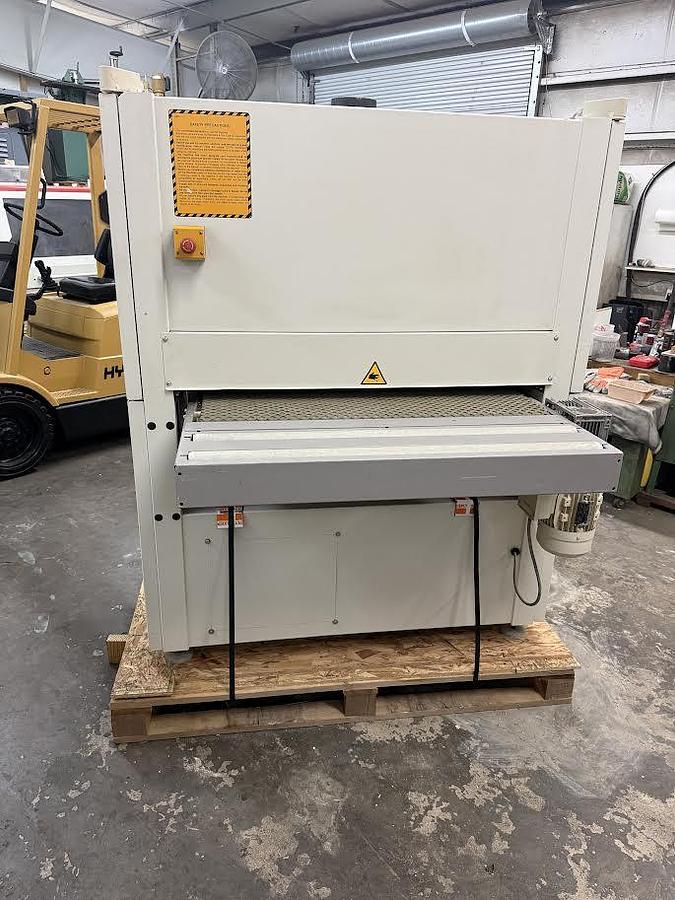

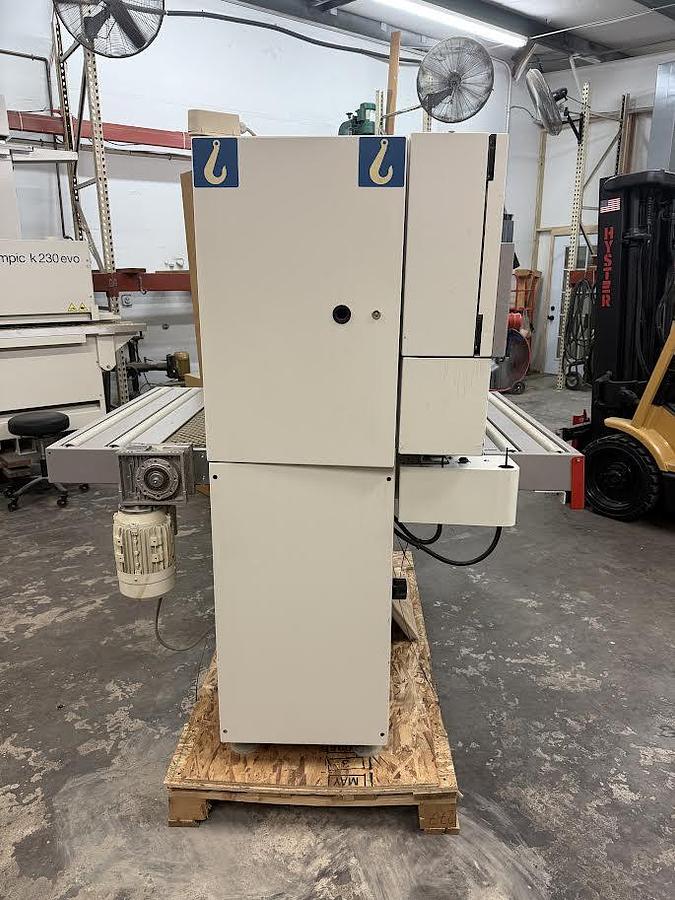

2006 SCMI Sandya 1/S CS 95 37″ Single-Head Wide Belt Sander

2006 SCMI Sandya 1/S CS 95 – 37" Wide Belt Sander

Very clean SCMI Sandya 1/S CS 95 single-head wide belt sander, designed for calibrating and finish sanding solid wood, panels, cabinet components, doors, and other woodworking applications. This compact industrial sander features SCM's combination sanding head, allowing the machine to perform both stock removal/calibrating and finish sanding operations.

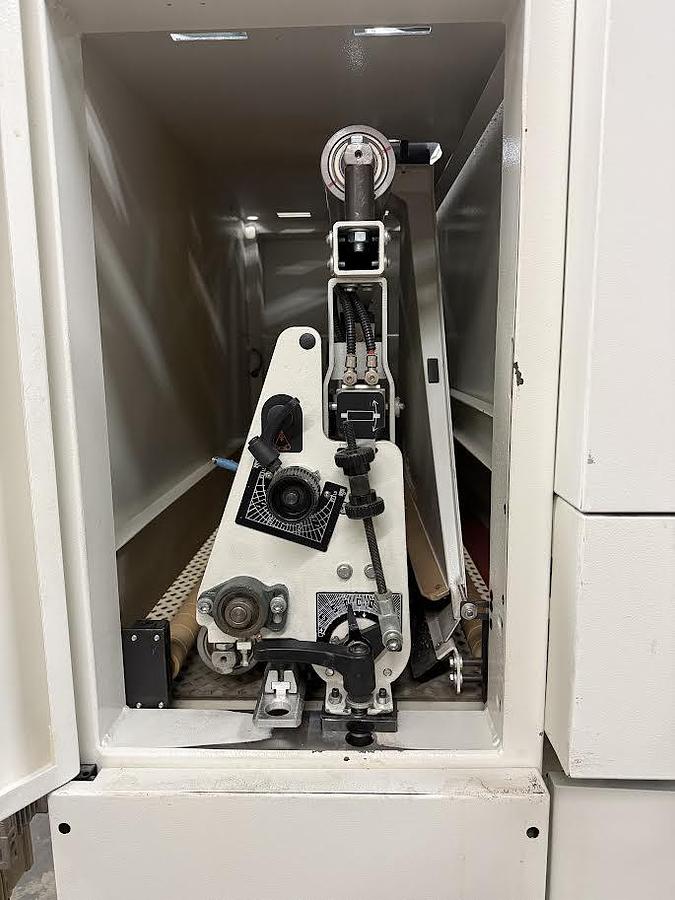

The CS combination unit incorporates an 85 Shore rubber-coated calibrating/contact roller along with a sanding platen/pad, providing versatility for both aggressive sanding and finer finishing work. SCM's literature identifies powered worktable positioning, digital thickness readout, rubber pressure rollers, electronic abrasive-belt tracking/oscillation, and a two-speed conveyor among the CS 95's equipment.

Specifications:

• Manufacturer: SCM / SCMI
• Model: Sandya 1/S CS 95
• Year: 2006
• Serial Number: AE/029337
• Machine configuration: Single-head / combination head
• Working width: 950 mm / approximately 37"
• Abrasive belt: approximately 37" × 60" (970 × 1,525 mm)

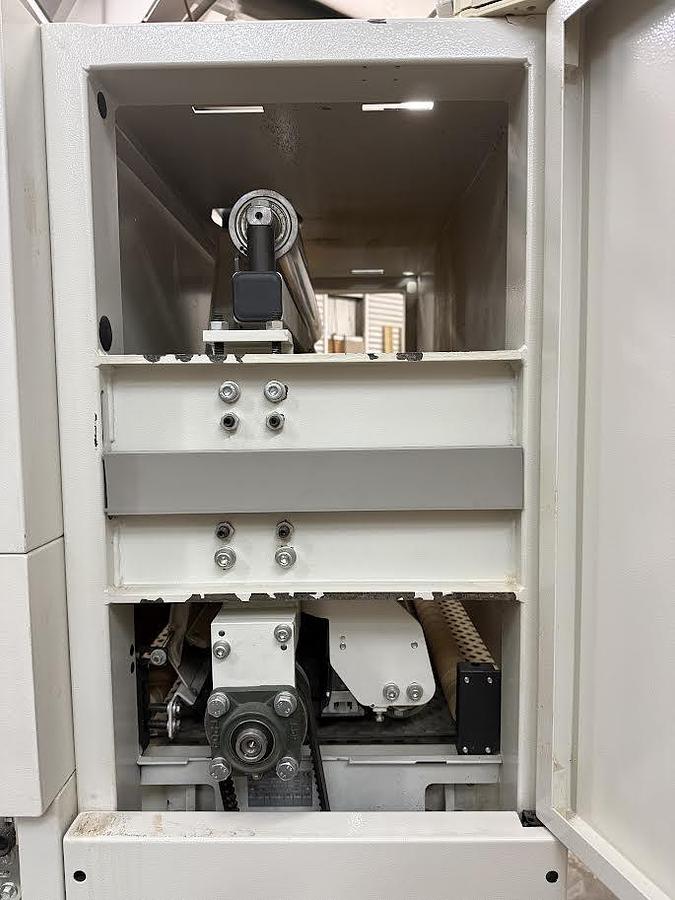

• Combination head: Rubber contact/calibrating roller + sanding platen

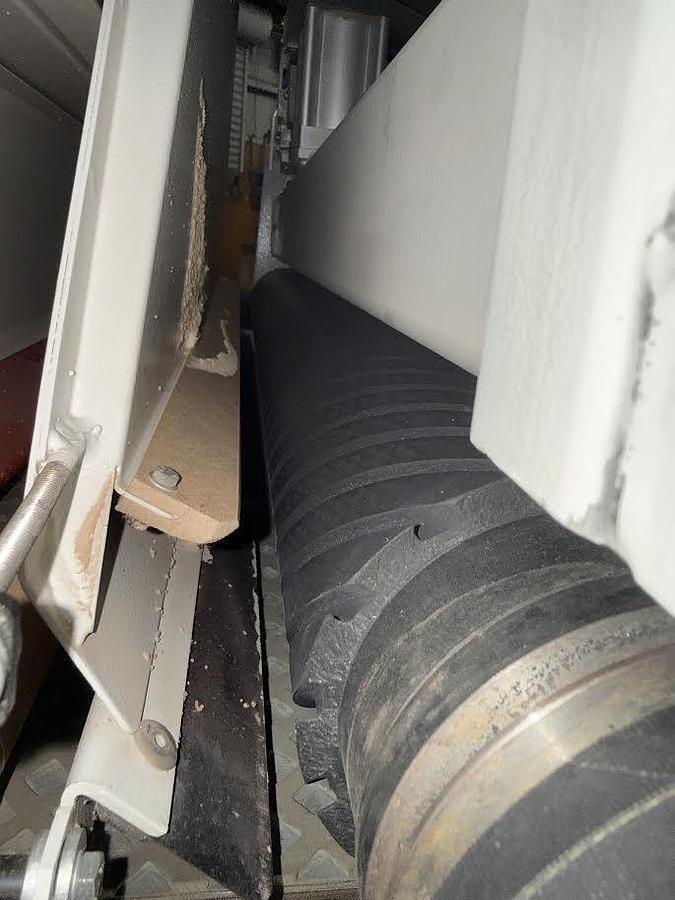

• Contact roller: 85 Shore rubber
• Main motor: commonly specified at 18 HP on the North American CS 95 configuration

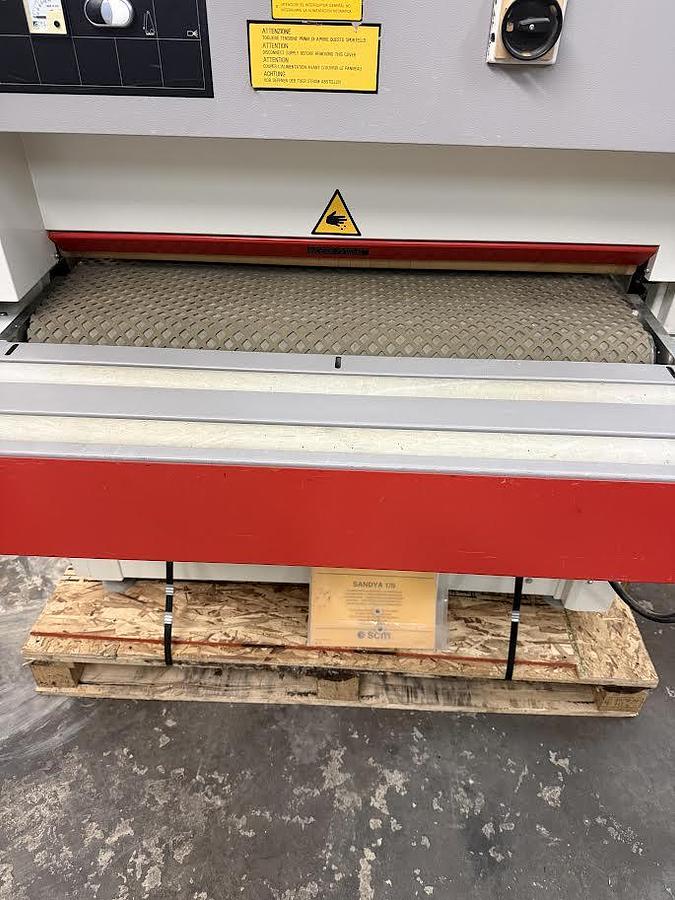

• Feed: Two-speed conveyor, approximately 15/30 FPM
• Maximum workpiece thickness: approximately 6.25" (160 mm)

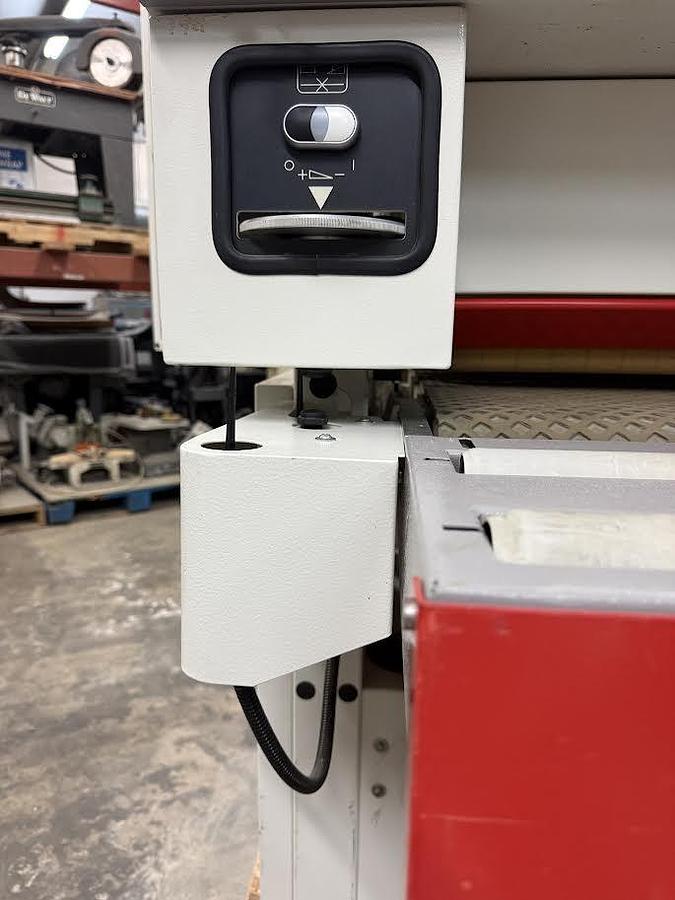

• Powered table positioning

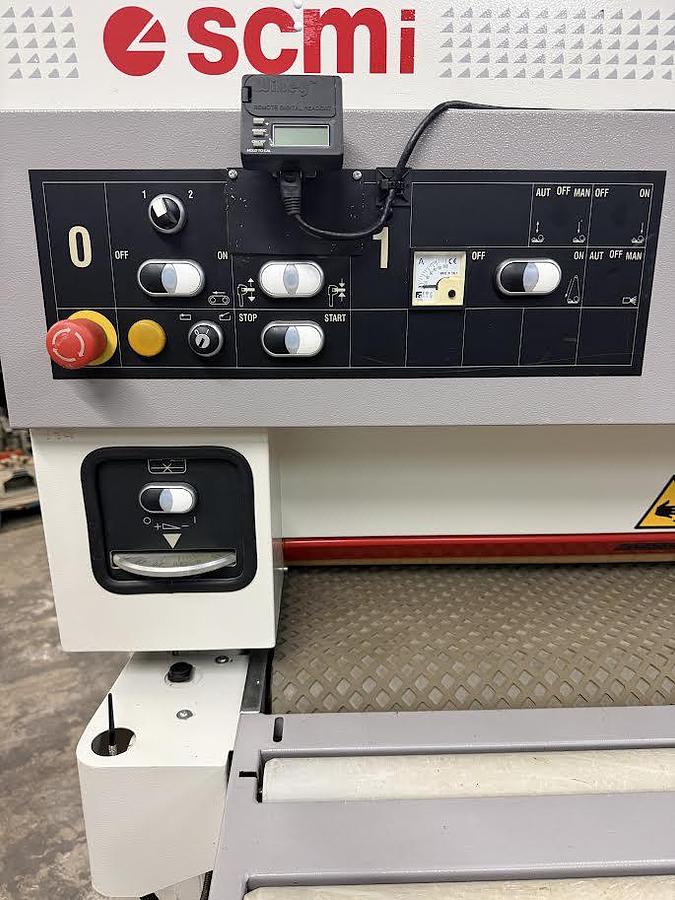

• Digital workpiece-thickness readout
• Electronic abrasive-belt tracking/oscillation
• Pneumatic belt tensioning
• Rubber-coated pressure rollers

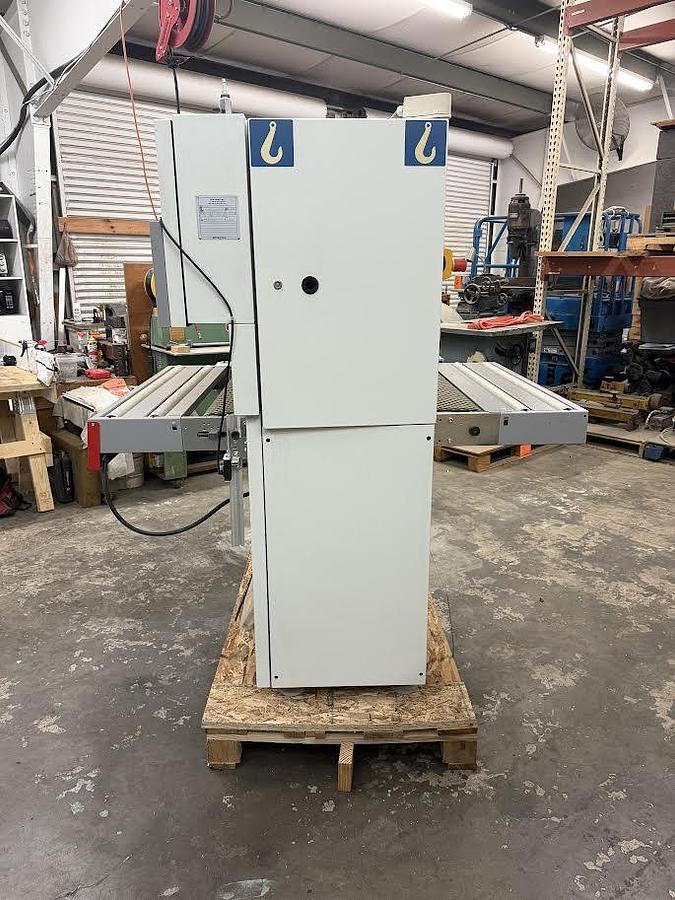

• Infeed/outfeed roller extensions
• Electrical: 230V, 3-phase, 60 Hz

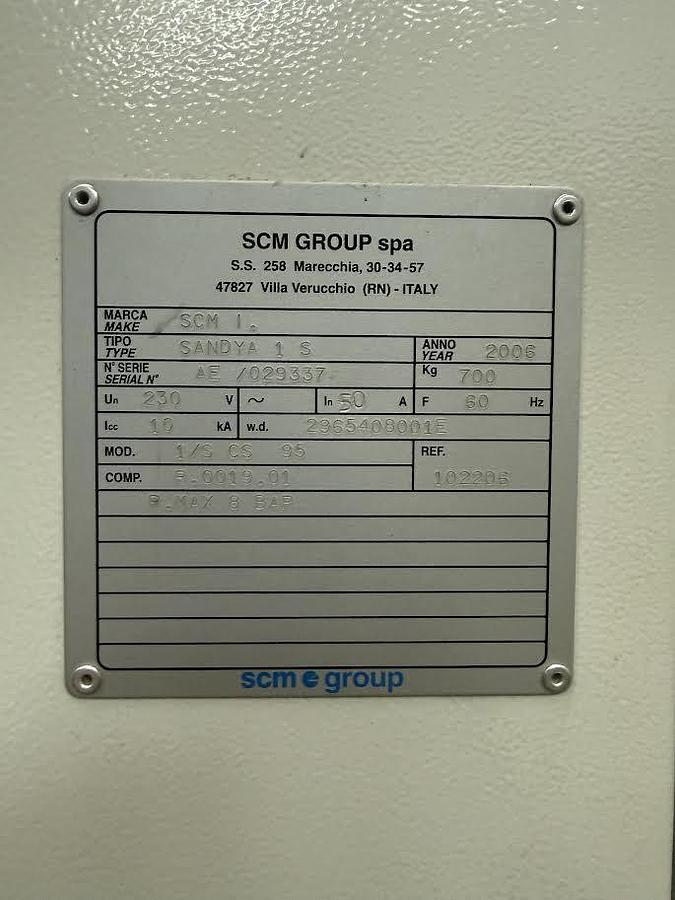

• Nameplate rated current: 50 amps
• Compressed air: maximum pressure shown on nameplate: 8 bar
• Machine weight: 700 kg / approximately 1,543 lb, per nameplate
• Made in Italy
