SCM NOVA SI4K
SCM NOVA SI4K
$13,985 (USD)
Description
The new circular saw designed to optimise performance and offer maximum versatility based on the operator's demands.
Advantages
MAXIMUM CUT QUALITY GUARANTEED OVER TIME

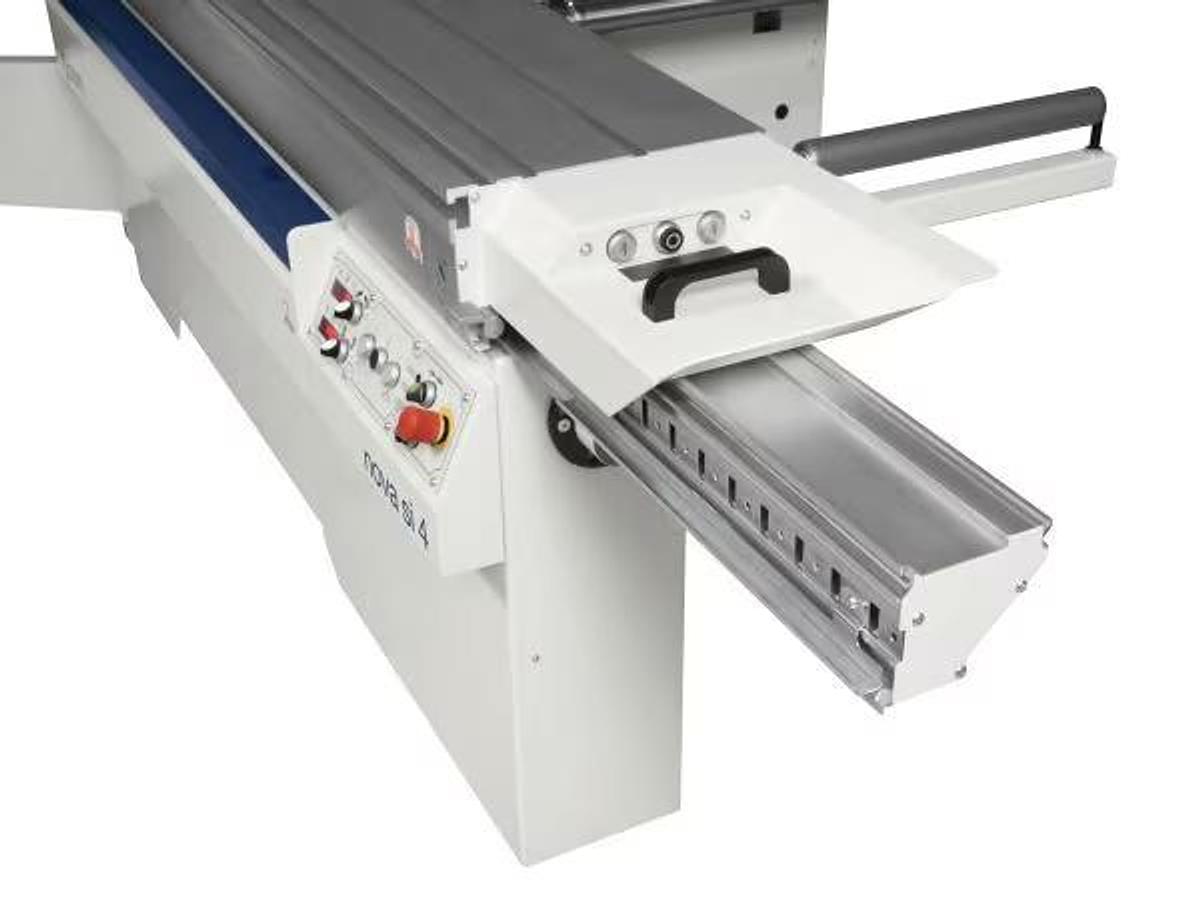

New highly reliable sliding carriage, guanranteed for 10 years and developed to enhance performance and customization. Its closed reticular geometry provides top rigidity and minimal flexing.
The carriage locking in any position makes the machine even more ergonomic and easy to use.
SOLID AND STURDY STUCTURE

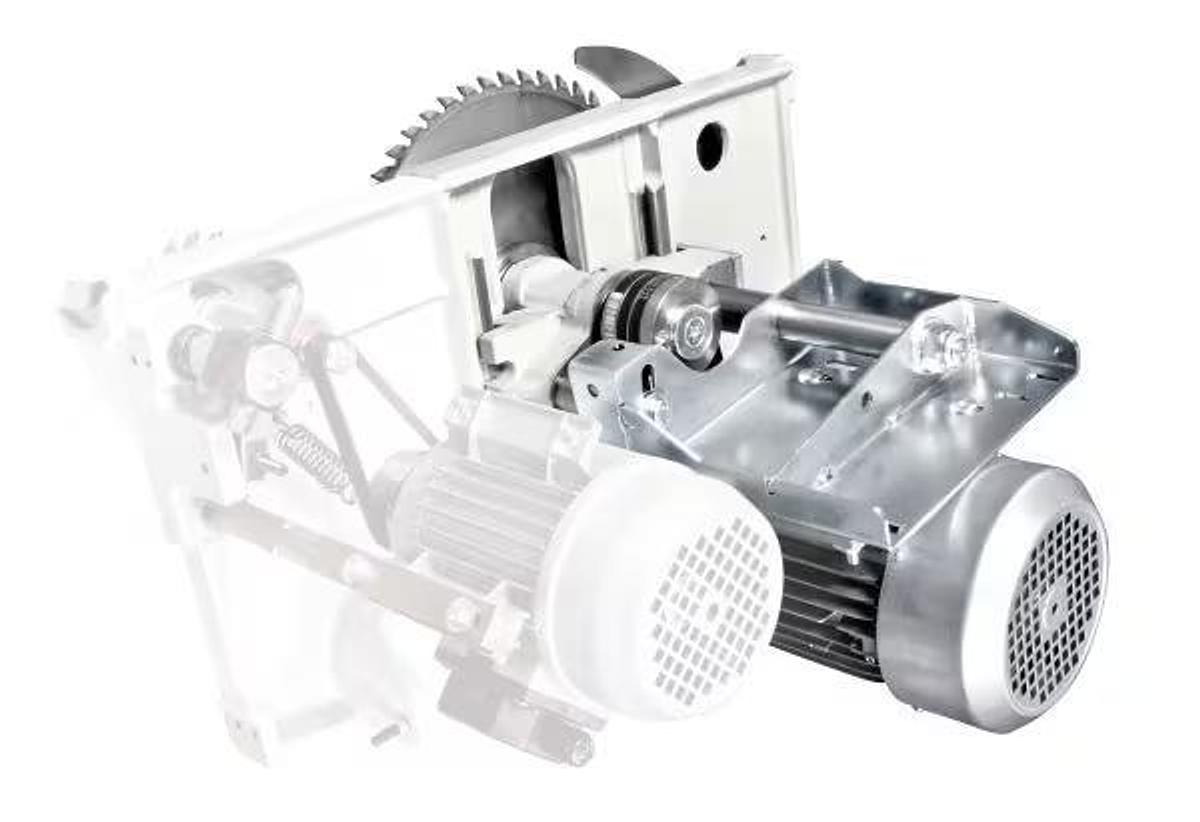

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels.
OPTIMAL SUPPORT

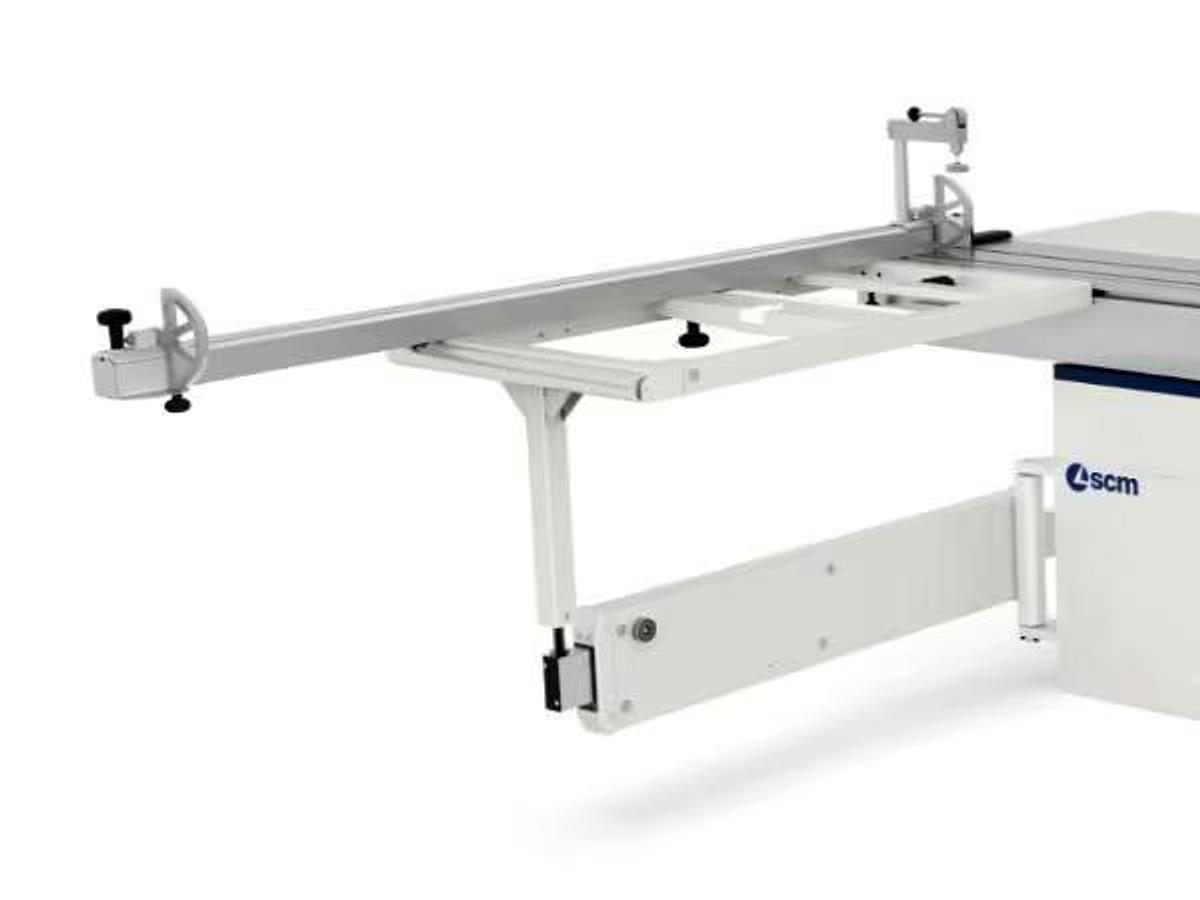

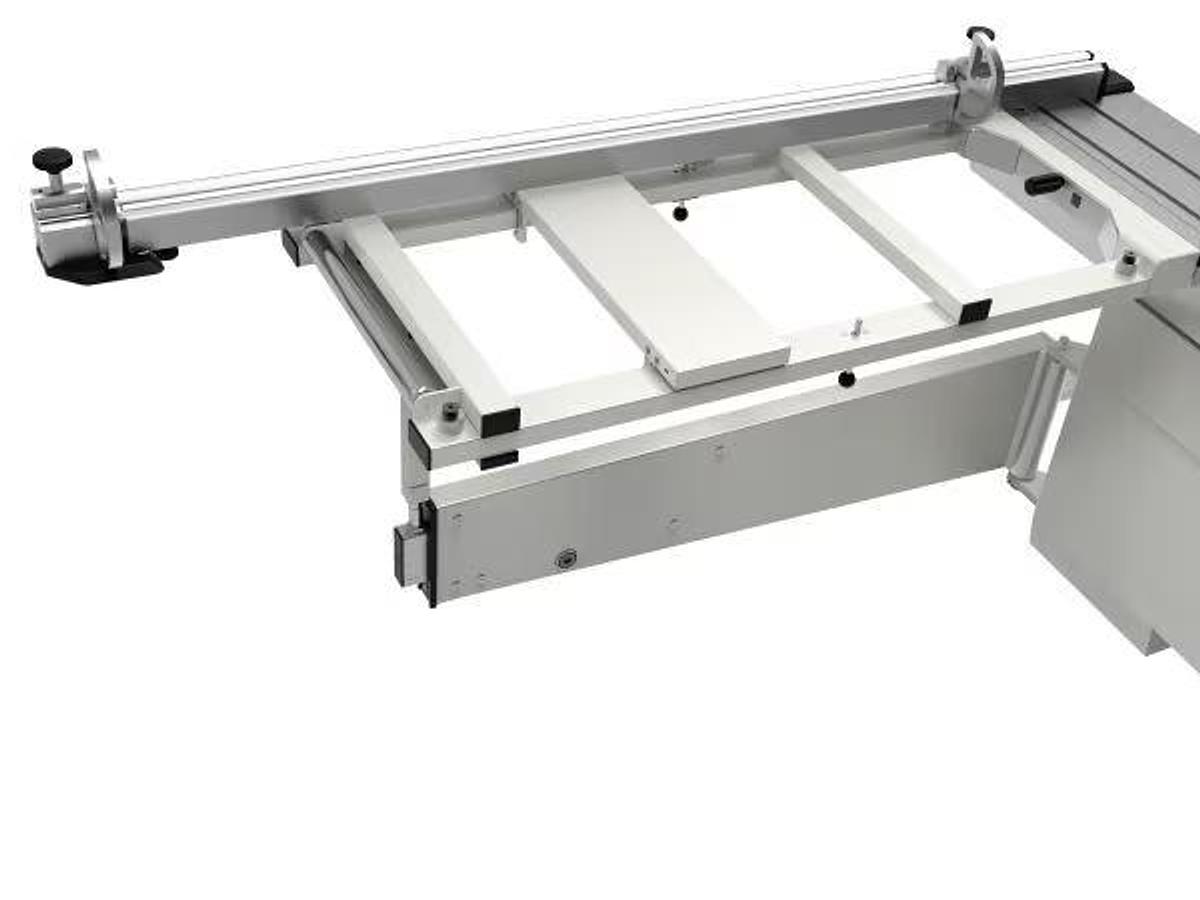

The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer's needs, different optional squaring frame devices are available.
HIGH VERSATILITY
Different optional squaring frame devices are available, including the new squaring frame with telescopic “Quick Lock” fence made of two reversible stops with lens and fitted with simultaneous locking/unloc
Specifications
| Manufacturer | SCM |
| Model | NOVA SI 4K |
| Condition | Used |
| Max. saw blade diameter with installed scoring unit (option) | 315 ÷ 400 mm |
| Max. saw blade projection from the table at 90°/+46° | 136/97 mm |
| Squaring capacity | 2250 ÷ 3800 mm |
| Cutting width on rip fence | 900 ÷ 1270 mm |
| Three-phase motors power starting from | 5 (6) / 50 (60) kW/Hz |
