SCM Morbidelli m600/m800
SCM Morbidelli m600/m800
Description
Modular machining centres equipped with multi-function aluminium work table, able to guarantee high quality standards.
Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Maestro CNC software.
Available also in "cell" version with lifting table and unloading belt.
SUPERIOR TECHNOLOGY FOR MACHINING WITH 5 AXES:

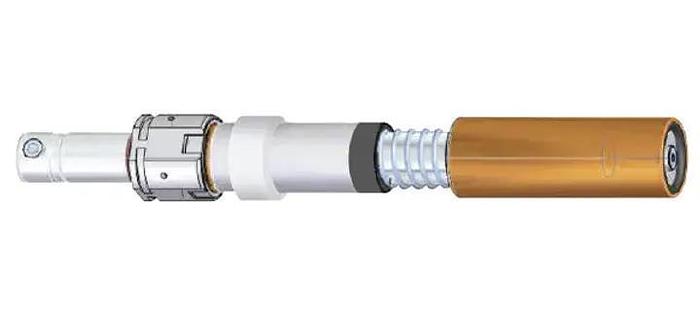

PRISMA ELECTROSPINDLE
Reduced maintenance, maximum flexibility and optimal finishing quality with the BEL.TECH technology (Belt technology system), the belt transmission system which eliminates vibration and heat from tools to the motor. Due to the compact structure, it allows easy operations in limited spaces.
THE PERFECT DRILLING:

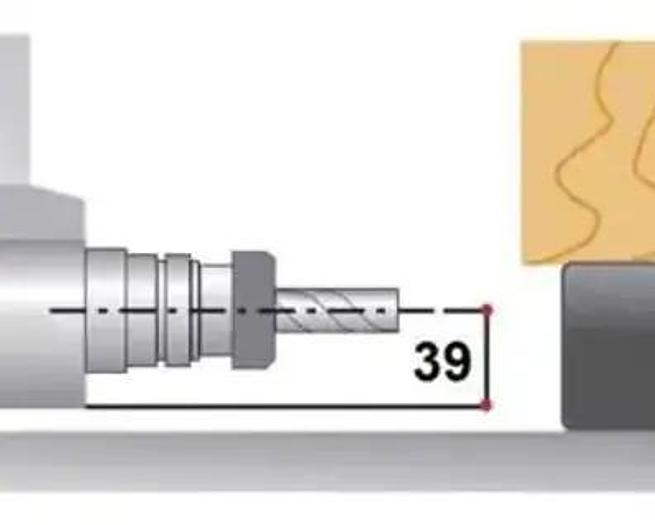

RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.
THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY:

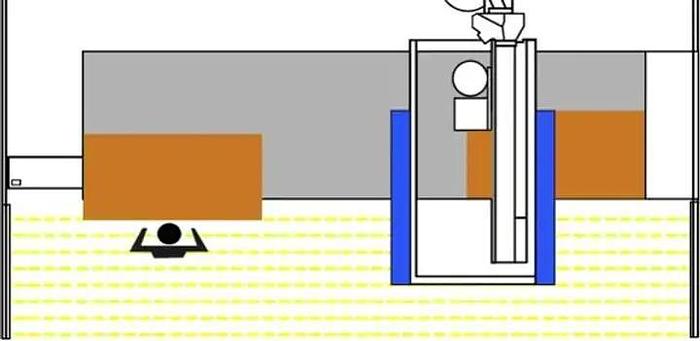

PHOTO-BUMPERS
High production capacity and greater freedom of movement also during alternated work process due to the safety system that brings together the bumpers devices with the photocells for the detection of the operator’s position inside the loading/unloading area.
VERY HIGH FLEXIBILITY:

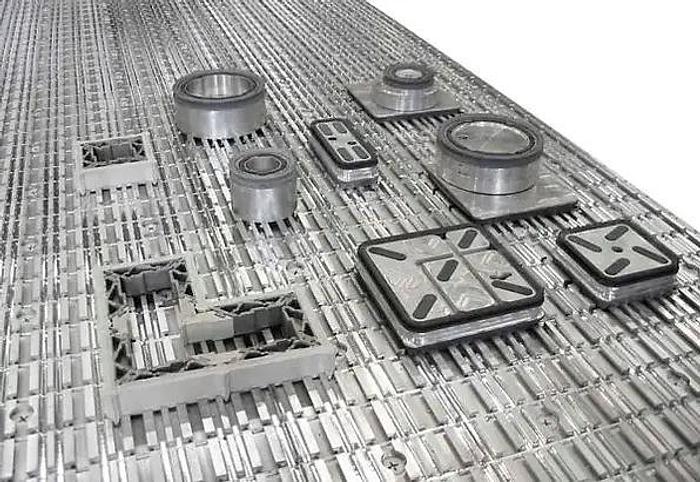

MULTI-FUNCTION WORK TABLE
Extremely stiff work table made of extruded aluminium, designed to maintain a perfect planarity over time, even after repeated mechanical stresses. It is ideal also for nesting machining.
Specifications
Manufacturer | SCM |
Model | m600/m800 |
Condition | New |
