Description
High speed automatic push fed saw for optimized cutting and defect removal.

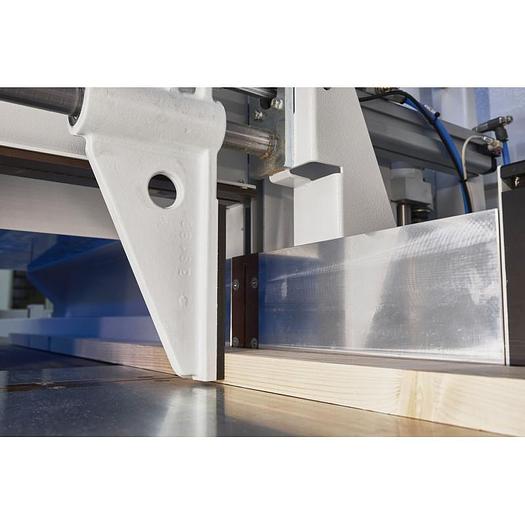

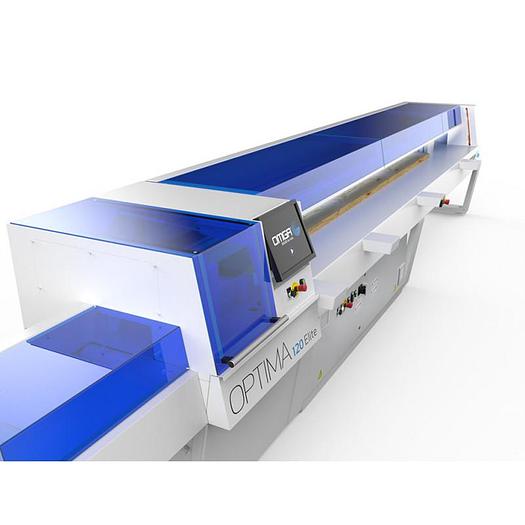

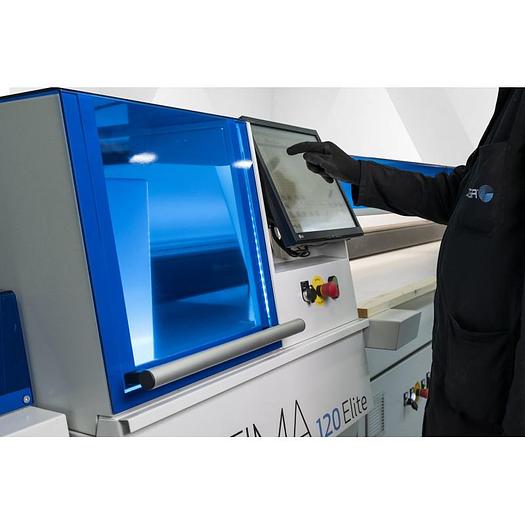

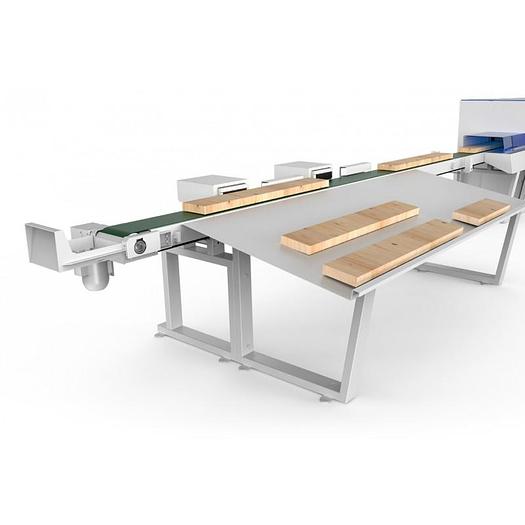

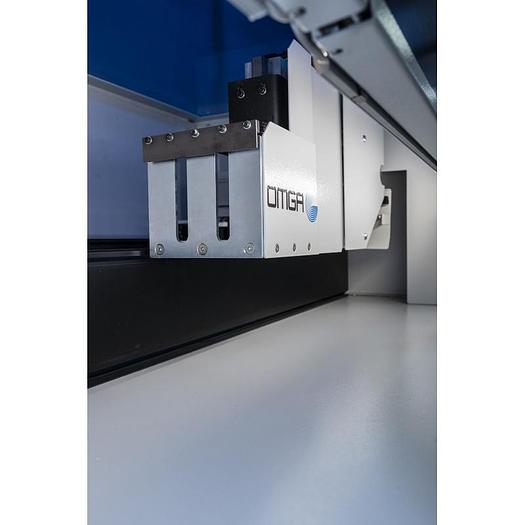

OPTIMA 120 Elite is an Optimizing, Defecting Cut-off Saw with pusher feeding system. Equipped with a latest generation numerical control, equipped with Windows Embedded operating system, with Touch Screen, which combines reliability, ease of use and ergonomics. The network connection is guaranteed by an available RJ45 Ethernet port and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine. The pusher system, rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm). The loading table, allows the operator to grade and prepare multiple boards which may be loaded in sequence, eliminating waste of time. The cutting area is fitted with a system of “intelligent” vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces. The optimization software features a wide variety of available cutting programs and combinations, which make this system very versatile and ready to respond to the different needs of the industry. The OPTIMA 120 Elite is available in 2 different configurations of maximum length of infeed boards, 4200 mm and 6200 mm. The system may be completed with a variety of optional equipment such as length sorters with kickers, automatic loading systems, in-line high resolution ink-jet printer, width sensor as well as custom executions, based on the needs of our customers.
Specifications
Manufacturer | OMGA |
Condition | New |
Max. piece thickness | 4 5/16" 4" - 2" [KC] 4 5/16" 4 5/16" |
Max. piece width | 12" 12" - 7" [KC] 12" 12" |
Max. infeed length | 13'9" or 20'4" 13'9" or 20'4" 13'9" or 20'4" 13'9" or 20'4" |
Max. feed Speed | 400 FPM 800 FPM 400 FPM 200 FPM |
Saw blade motor power | 6 HP 7.5 HP 6 HP 6 HP |
Saw blade diameter | 18" (20" Opt) 18" - 14" [KC] 18" (20" Opt) 18" (20" Opt) |
Feed motor power | 2.7 Nm (1.50 kW) 5.2 Nm (4 kW) 2.7 Nm (1.50 kW) 2.5 Nm (.75 kW) |
Cutting Speed | 0.4 - 1 sec. 0.2 - 1 sec. 0.4 - 1 sec. 0.5 - 1 sec. |
Average number of cuts | 30 - 35 min. 50 min - 55 min [KC] 25 - 35 min. 15 - 20 min. |
