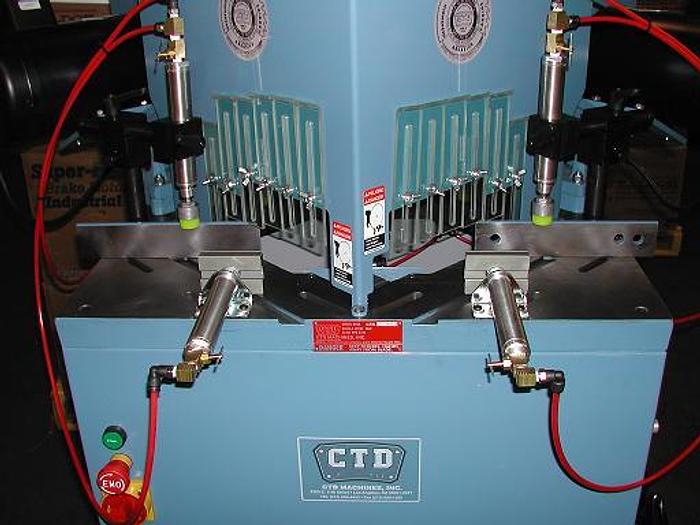

CTD Model D45AX14 Frame & Notching Saw
The CTD 400 Series Cut Off Saws are designed for heavy duty production cutting of aluminum, wood, plastics and steel. These rugged, heavy duty machines offer years of precision cutting.
Specifications
Fixed Head Double Mitre Saw
2 H.P. 1 or 3 phase
Magnetic Starter
3450 RPM

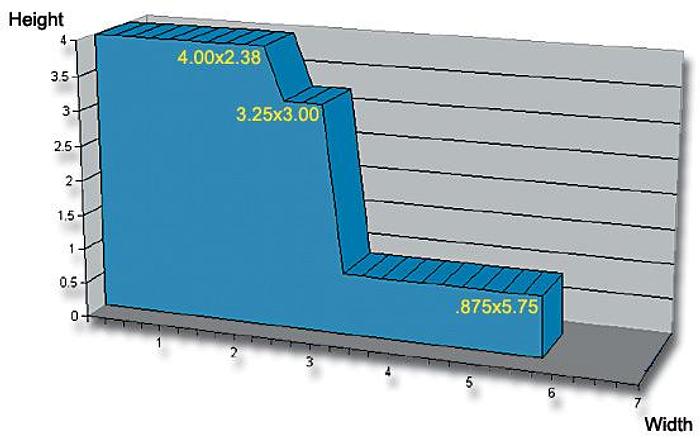

Cutting Capacity:
Blade Capacity
5/8" 16mm with 2-1/4" 57mm saw collars.
Arbor
1" 25mm with 5" 127mm saw collars.
Spindle & Pivot
Both mounted on pre-loaded and sealed ball bearings.
Iron Castings
Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.
Motors & Voltages
1-1/2 H.P. single phase 115/230 Volt and 3 phase 230/460 Volt, Totally Enclosed Fan Cooled Motors, 60 Hz, 3450 RPM with Dual Magnetic Starter. Consult factory for amerage load of motors.
Table Height
34-1/2" 88cm from floor.
Air Pressure
75 PSI 5.4 kg/cm2 with Air Filter/Regulator/ Lubricator; includes Auto Drain.
Floor Stand
Close coupled heavy gage steel stand completely enclosed with 6" dust outlet. 1200 CFM required.
Blade Wear & Angular Adjustments
Each saw head has adjustments for blade variation. Allows for precision alignment of blades to minimize scrap. Saw heads are adjustable up to 3°, always assuring perfect mitres.
Length of Stroke Adjustment
The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, thereby saving wasted time and motion.
Production Rate
The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.
Size
Standard machine, without tables or gages; Weight 550 lbs. 250kg; 46" 117cm Wide x 22" 56cm front to back x 51-1/2" 131cm High.
Crated Size
45" 114cm Wide x 28 -1/2" 72cm front to back x 60" 152cm High.
Actuation
Pneumatic foot valve with cover.
Air Consumption
1.0 CF per 10 strokes at 75 PSI .043 cubic meters per minute at 5.4 kg/cm2.
Specifications
Manufacturer | CTD Machines |
Condition | New |
Blade capacity | 14" |
14" | 4" X 2.5" or 2"X6 |
