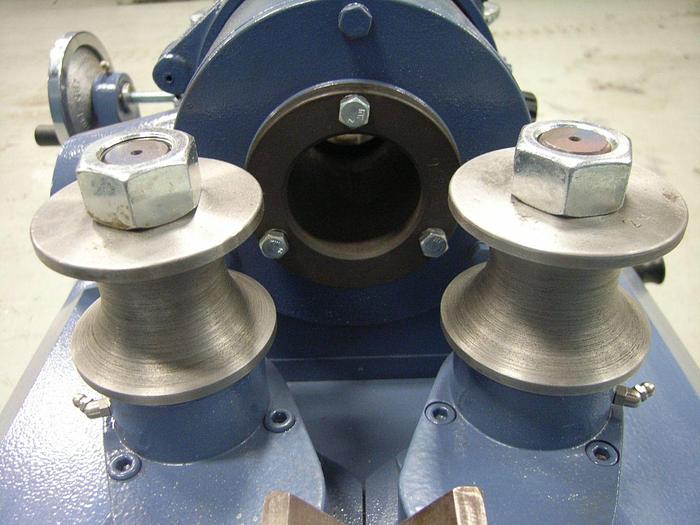

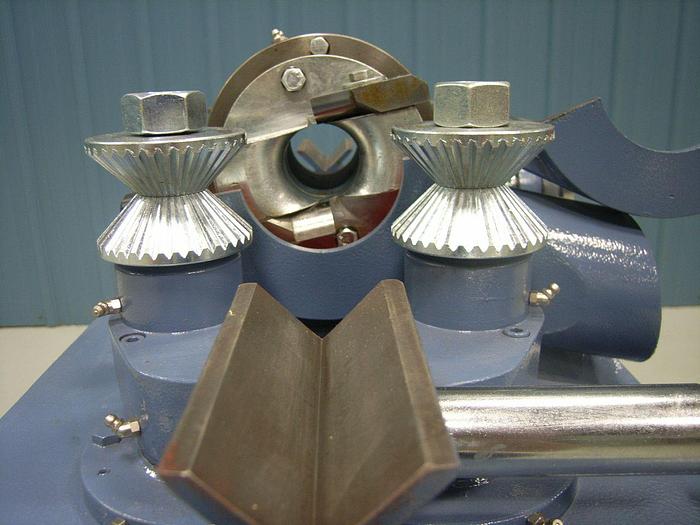

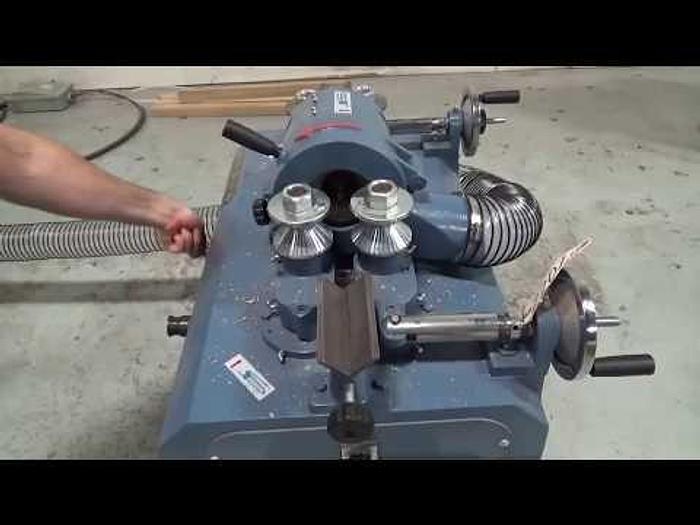

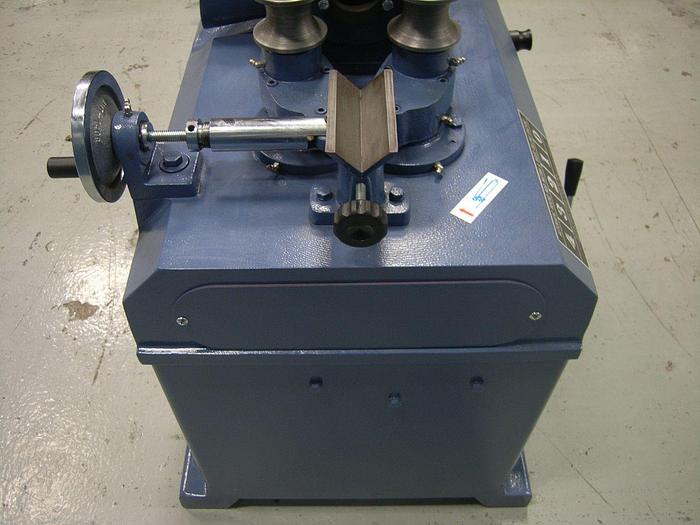

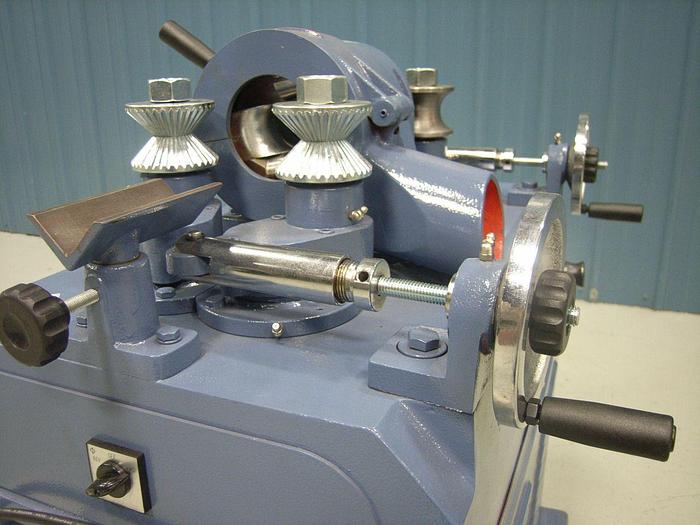

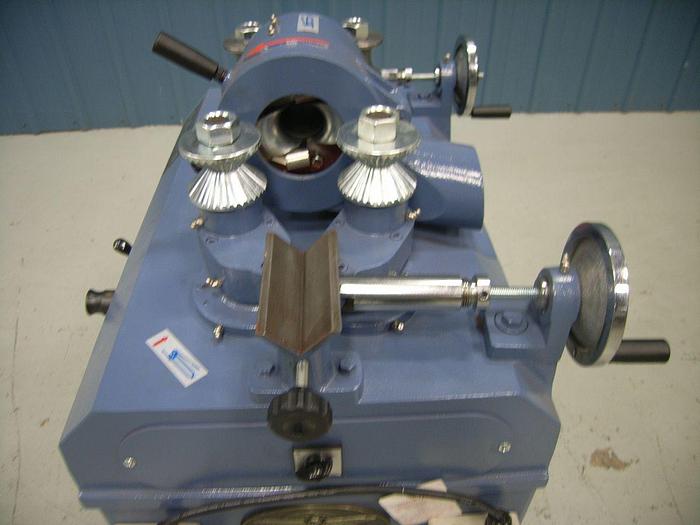

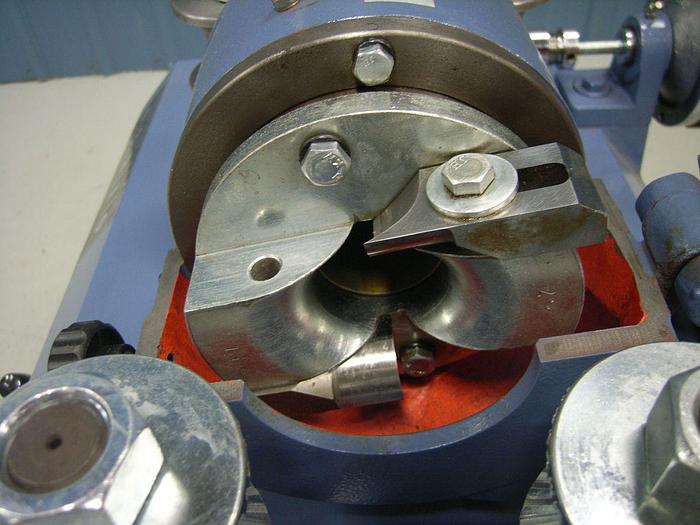

Round Rod Milling Machine - 7660

Round Rod Milling Machine - 7660

$12,550 (USD)

Description

Highly efficient design for maximum production. Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute. 4-feed rates allow greater versatility of material and applications. Feed can be reversed for quick stock removal in the case of a jam. Fully guarded hood provides a safe work station. Wide range of capacity from 3/8” to 2-1/4” with optional cutter sets. Includes 1” and 2” cutter sets. Built-in 4” dust port allows efficient dust management. Magnetic controls for safer operation. Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Model Number7660
Cutting Capacity3/8” - 2-3/8”
Maximum Material Removal3mm
Cutter Set Included1” & 2” only
Minimum Length of Stock12"
Cutterhead Drive Motor5HP
Motor2HP
Cutterhead Speed3,000 RPM
Feed Speeds20, 30, 43, 53 FPM
Overall Dimensions36-1/4 x 30 x 39-1/2”
Main Motor5HP, 3Ph 220V/440V Prewired 220V (20/10 Amp)
Net Weight660 lbs.
Gross Weight770 lbs.
