9" x 138" Oscillating Edge Sander - 3HP M-6320

9" x 138" Oscillating Edge Sander - 3HP M-6320

$5,699.99 (USD)

orCall 239-770-4474

Description

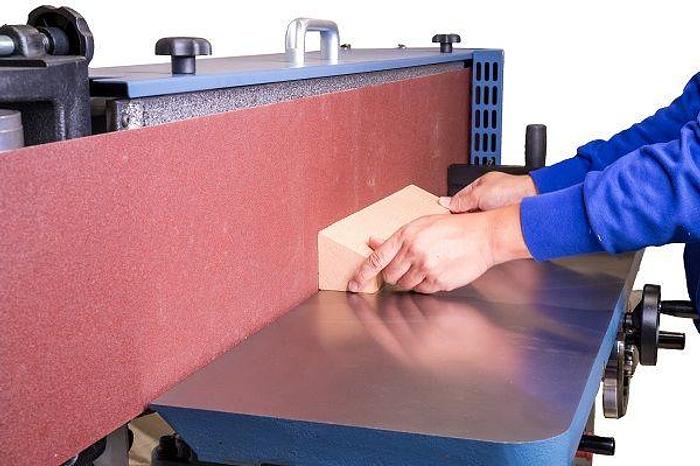

Introducing the ultimate edge sanding workhorse with a large 9" x 138.5" belt with adjustable oscillation action. The heart of this edge sanding marvel lies in its precision-balanced drums and a robust TEFC 3HP motor (1Ph or new 3Ph). This dynamic duo ensures your woodworking experience is characterized by smooth, reliable operation, resulting in projects completed with impeccable quality efficiently. The heavy cast iron tables, precision-ground to exacting standards, deliver exceptional stability and consistency, setting the stage for extraordinary craftsmanship. What truly sets this belt sander apart is its unparalleled versatility. With the ability to adjust both tables up and down, you wield complete control over the sanding process, while the spring-assisted raising and lowering feature on the main table ensures ease of operation. For intricate tasks, the end table allows you to tackle contoured sanding applications with precision. Our Large 9" x 138.5" belt sander is meticulously designed to meet your professional needs and elevate your woodworking experience to new heights. Large 9” x 138.5” belt features adjustable oscillation action for a superior finish. Tables are heavy cast iron and precision ground. Both tables adjust up and down for complete use of belt. Main table features spring assisted raising and lowering. End table allows contoured sanding applications. Drums are precision balanced for smooth operation. Built-in 4” port for efficient dust management. Magnetic Controls for added safety and motor protection. Powerful TEFC 3HP. 1Ph or 3Ph power options. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Stock Number6320.001
Model Number6320
Table MaterialCast Iron
Main Table Size13” x 46”
End Table Size13” x 18” Radius
Both Table Working Height34-1/2” to 42-1/2”
Main Table Tilt-5° in 45° out
End Table TiltFixed
Belt Size9” x 138.5”
Belt SpeedApprox. 4,100 FPM
Oscillation0, 40-60 per minute
Table Height33"-40.5"
Oscillation Stroke13/64" - 25/64"

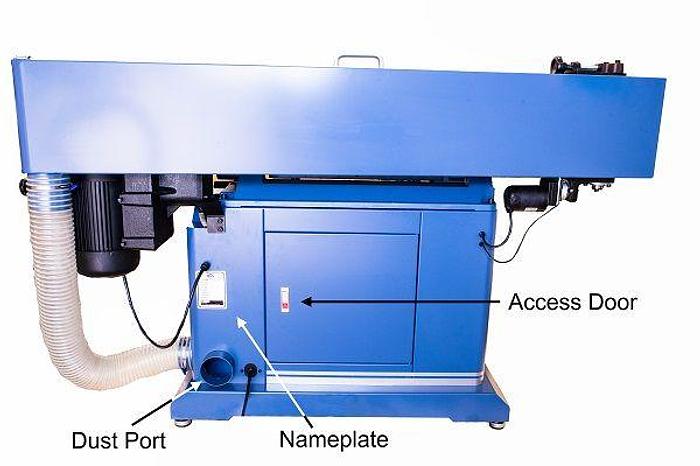

Dust Port Diameter1 x 4"
Minimum CFM Required650 CFM
Motor3HP, 1Ph 230V Only (16.5 Amp)

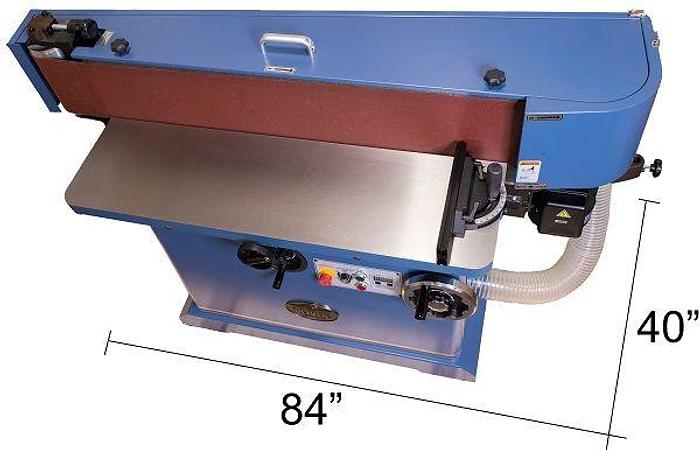

Overall Dimensions84“(W) x 40”(D) x 44”(H)
Gross Weight773 lbs.
