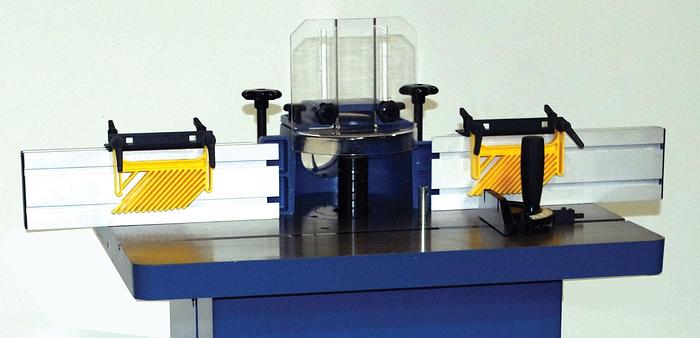

Shaper - 10047.001 - 3HP, 1PH
Shaper - 10047.001 - 3HP, 1PH
$2,899.99 (USD)
orCall 239-770-4474
Description
Large cast iron table is precision ground table to provide a solid work surface.
Table features pre-drilled and threaded holes for optional power feeder.
Full cabinet stand includes wheels and locks.

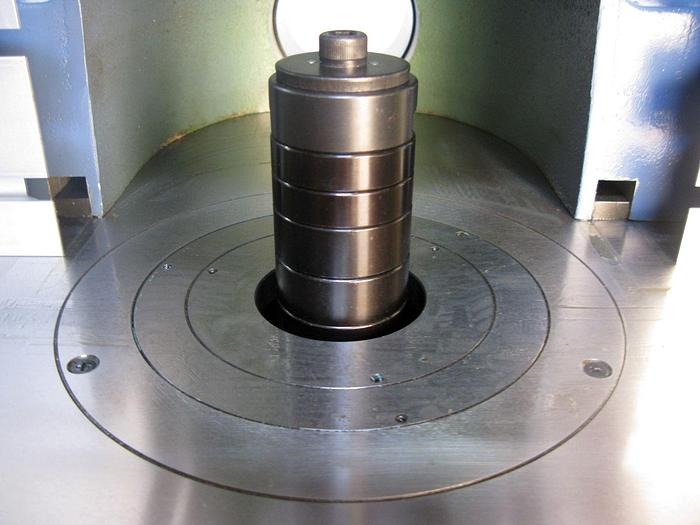

1-1/4” interchangeable spindle included, other optional sizes available.
Optional router bit collets available.
Four spindle speeds for versatility

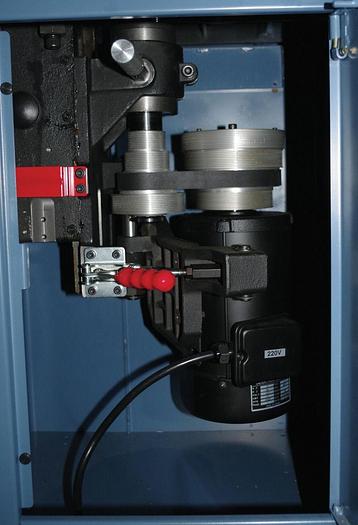

Belt changes are quick and convenient with unique tensioner.
Poly V-belt drive for smoother operation.
Spindle reverses for more options with each set-up.
Four inches of spindle travel allows more set-up options.
Starting pin for irregular shapes included.

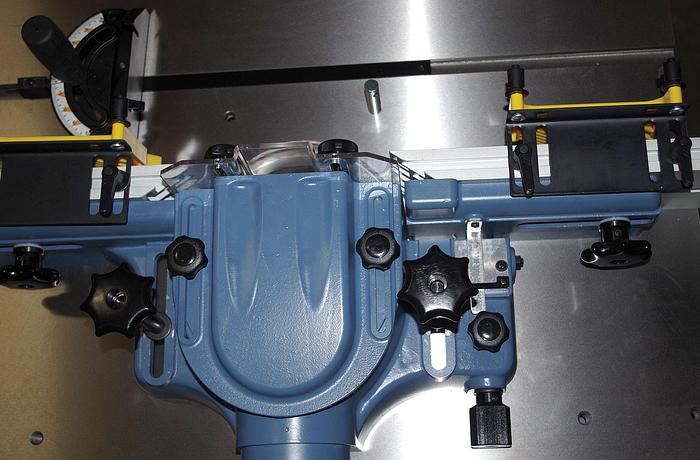

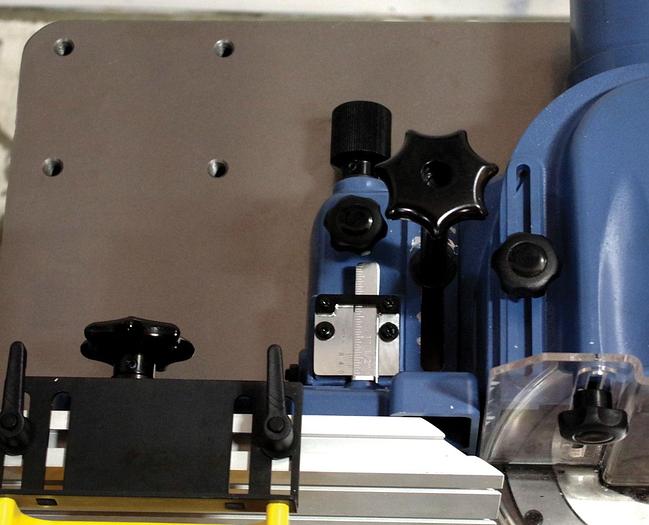

Fence is independent and includes micro adjustments.
Adjustable hold downs add to a safer operation.

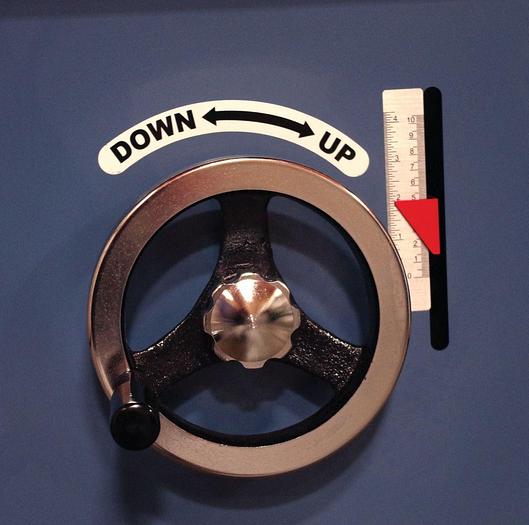

Extra large handwheel for easy and quick height adjustment.
Miter gauge included.
Magnetic controls for added safety.
Powerful TEFC motor in 3HP or 5HP to meet your needs. (1Ph Only)
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Specifications
Manufacturer | Oliver |
Condition | New |
Model Number | 10047.001 |
Ph | 1Ph |
Stock No. (3HP, 1Ph) | 10047.001 |
Spindle Speeds | 4,000, 6,000, 8,000, 10,000 RPM |
Spindle Diameter | 1-1/4” |
Verticle Spindle Travel | 4" |
Spindle Direction | Reversible |
Under Nut Capacity | 4” with 1-1/4” Spindle |
Table Opening | 6-1/4" |
Large Insert Opening | 4-5/16” |
Small Insert Opening | 2-1/2” |
Table Height | 34-3/8” |
Table Size | 32” x 26” |
T-Slot | 3/4” x 3/8” |
Fence Size (2) | 4-13/16” x 16” |
Dust Port Diameter | 4" |
Minimum CFM | 800 |
Table Dimensions | 40” x 27” |
Motor 1Ph | 3HP, 220V 1Ph only (8 Amp) |
Net Weight | 473 lbs. |
Gross Weight | 550 lbs. |
