15" Planer w/Oliver HCX Helical Cutterhead - 10014
15" Planer w/Oliver HCX Helical Cutterhead - 10014
$3,099.99 (USD)
orCall 239-770-4474
Description
Unique design allows motor and cutter head to move in unison.
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.
Oliver HCX Helical cutterhead with premium carbide inserts.
4-sided cutting inserts are indexed and easy to replace.
Heavy cast iron construction including extension wings.
Table and extensions wings are precision ground for smooth stock feeding.
Table is fixed allowing easy use of auxiliary stock support.

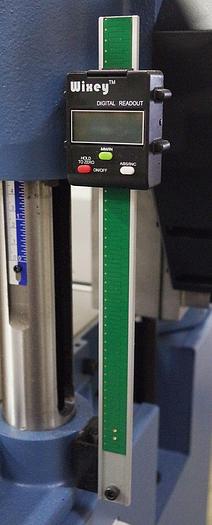

Wixey digital read out allows precise thickness settings.

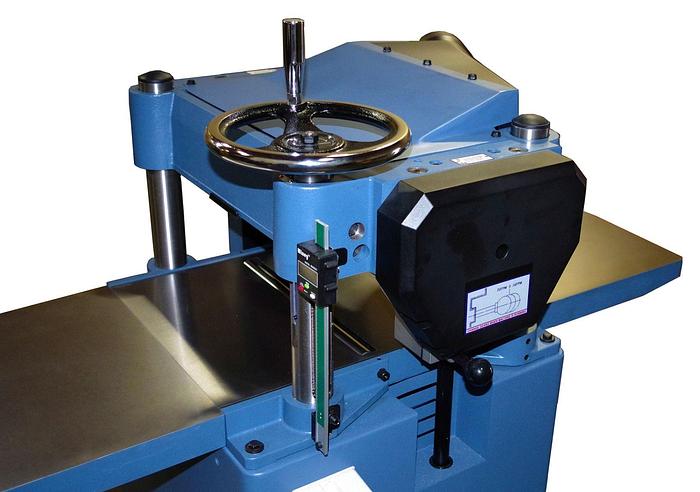

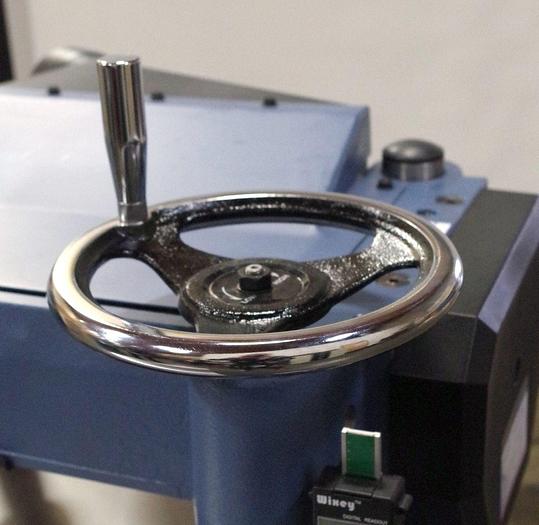

Large hand wheel and support struts allow easy height adjustment.
Four-post design ensures head alignment regardless of stock thickness.

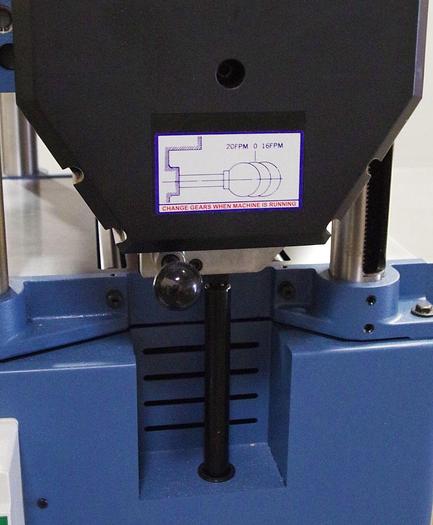

Two-speed feed gearbox for better cuts.
Oil bath gear lubrication for years of performance.

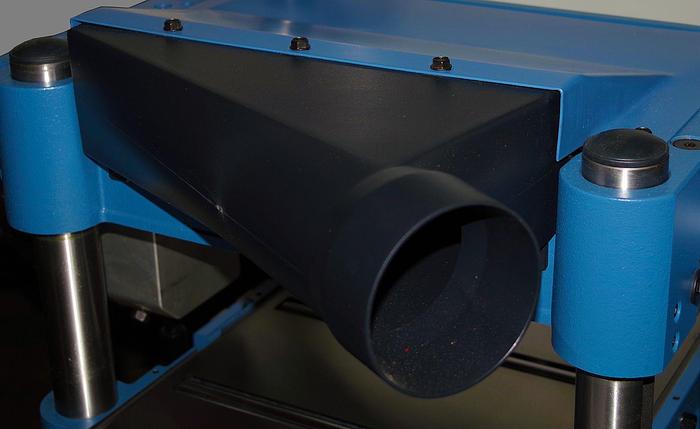

4” port allows excellent dust management.

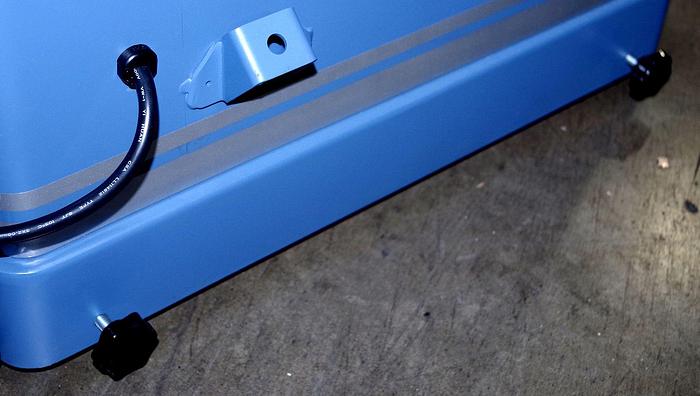

Built-in heavy-duty casters for mobility.

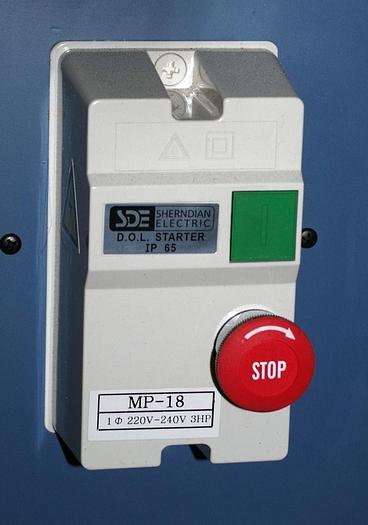

Magnetic switch for added protection and safety.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Specifications
Manufacturer | Oliver |
Condition | New |
Stock Number | 0 |
Model Number | 10014 |
Stock No. (3HP, 1Ph) | 10014.201 |
Maximum Stock Width | 15" |
Maximum Depth of Cut | 1/8" |
Maximum Stock Thickness | 6" |
Minimum Stock Thickness | 3/16" |
Minimum Stock Length | 6" |
Dust Port Diameter | 4" |
Feed Speeds | 16/20 FPM |
Bed Rollers | 2, Adjustable |
Table Size | 15" x 19-5/8" |
Table Size w/Extension Wings | 15" x 47-5/8" |
Table Height | 30-1/8” |
Cutterhead Diameter | 3" |
Cutterhead Speed | 5,000 RPM |
Number of Knives | 52 |
Number of Knives (helical) | 52 |
Table Support | 4-Column |
Motor | 3HP, 220V Only (1Ph, 12 Amp) |
Motor 1Ph | 3HP, 220V Only |
Overall Dimensions | 28” x 47-1/2” x 52” |
Net Weight | 401 lbs. |
Gross Weight | 470 lbs. |
