12" Parallelogram Jointer w/Oliver HCX Helical Cutterhead - 4265C - 5HP, 3PH

12" Parallelogram Jointer w/Oliver HCX Helical Cutterhead - 4265C - 5HP, 3PH

$7,100.00 (USD)

orCall 239-770-4474

Description

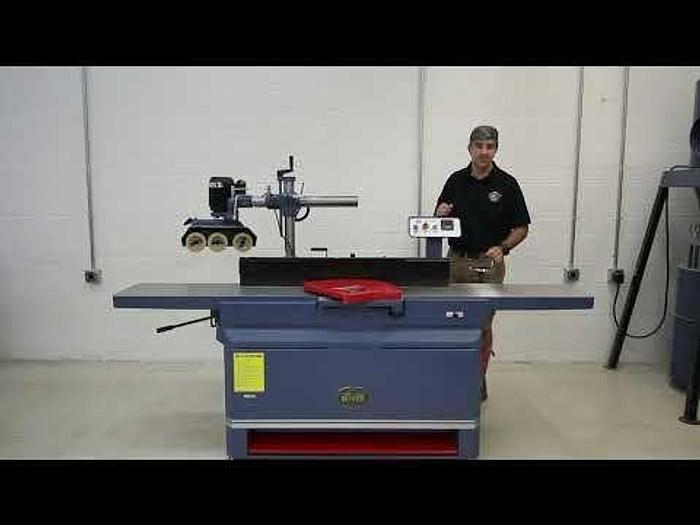

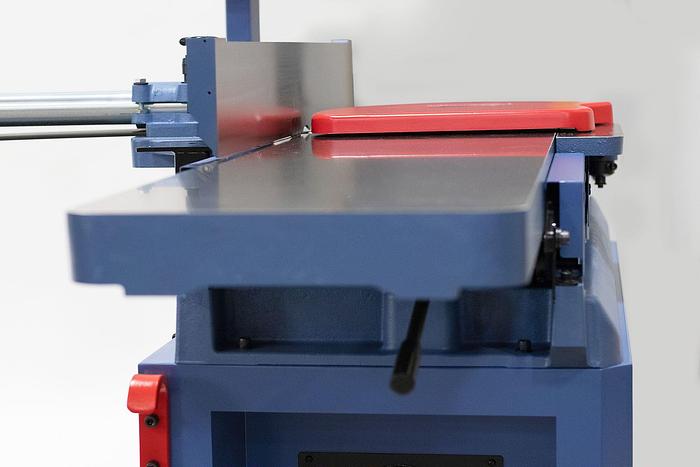

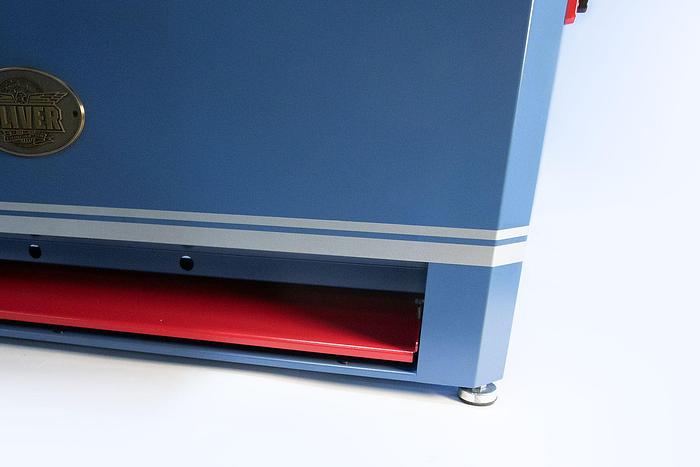

Extra-long precision ground tables provide a stable work surface. Parallelogram design provides smooth accurate cuts. Massive cast iron frame offers stable table support. Helical cutter head includes premium carbide inserts. 4-sided cutting inserts are indexed and easy to replace. Wixey DRO shows table infeed table movement for precision cuts. Pre-drilled bracket for easy (optional) powerfeed mounting. Foot activated emergency power shutoff. Lever controlled outfeed table allows easy adjustment. Long solid cast iron fence features positive stops at 45° and 90° Easy to read depth of cut gauge. Powerful TEFC motor. Ploy V-belt drive efficiently delivers power to the cutter head. Note: This new 4265C 16" jointer has a solid cast iron fence that replaces the aluminum fence and fold down guide in this video. The new model does not have the fold down guide. This machine is only avaliable for shipping to the nearest terminal with loading ramp for local pick up due to its size. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Stock Number4265.102.4S (5HP, 3Ph)
Model Number4265
Ph3Ph
Infeed Table Travel3/4"
Cutterhead Speed5,500 (RPM)
Number of Knives (helical)56 Inserts
Maximum Depth of Cut1/8"
Rabbeting Capacity3/4"
Dust Port Diameter6"
Table Dimensions88”L x 12”W
Table Height34-3/4”

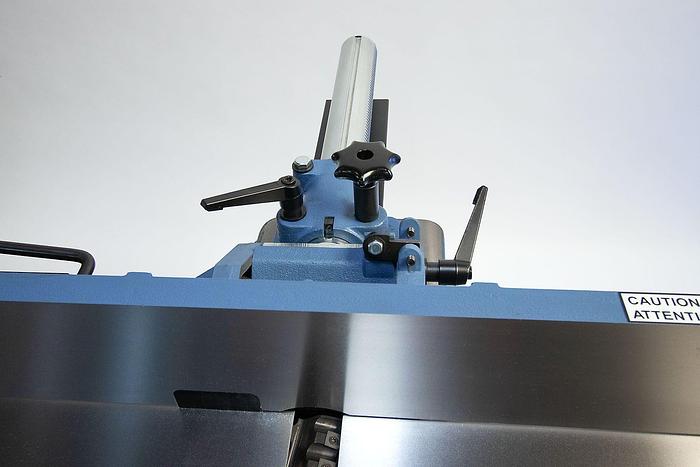

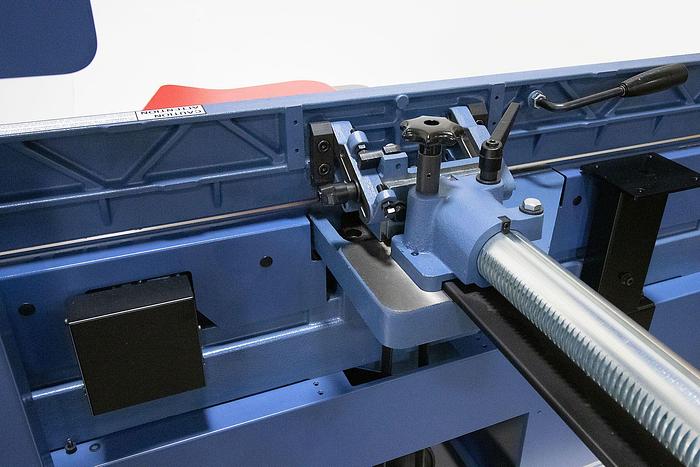

Fence Dimensions47”L x 6”W
Fence Tilts45°
Positive Stops90° and 45°
Motor 3Ph4265.102.4S 5HP, 230V (3Ph, 11.8/5.9 Amp)
Overall Dimension88”L x 29”W x 55”H
Net Weight814 lbs.
Gross Weight980 lbs.
