Description
The STRIEBIG STANDARD – the world's best-selling vertical panel saw.
The STANDARD S complements this success story. It combines proven technology with new technology. With the two versions TRK1 and TRK2, as well as the recommendable equipment with the attractive Comfort Package, it offers a wide range of possibilities.
STANDARD S: two versions, many possibilities

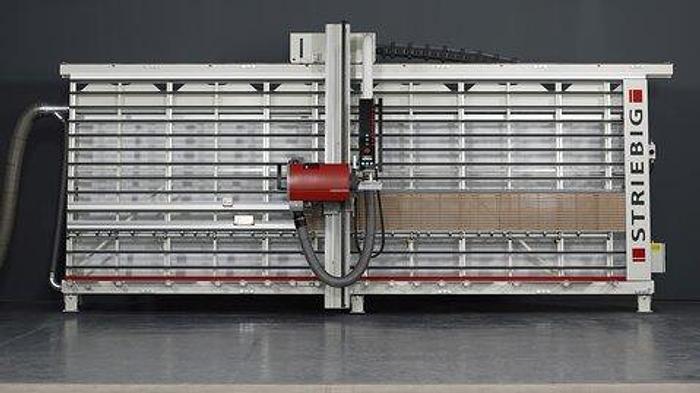

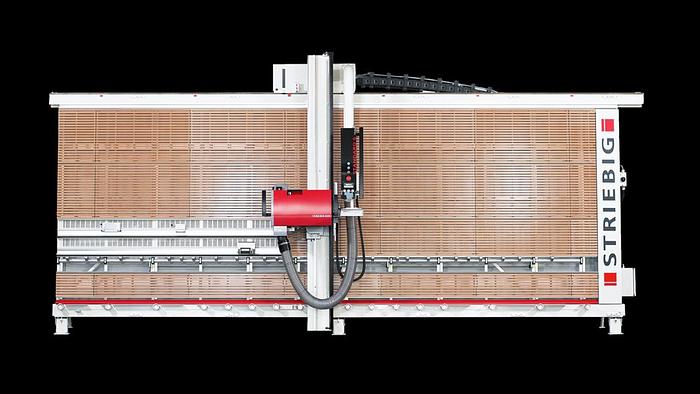

STANDARD S TRK1
With automatically yielding wooden support wall.

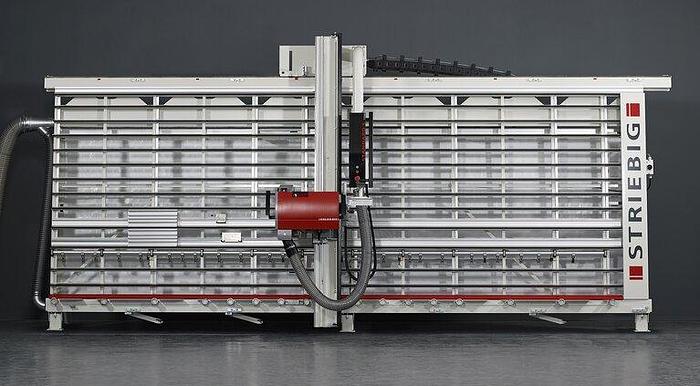

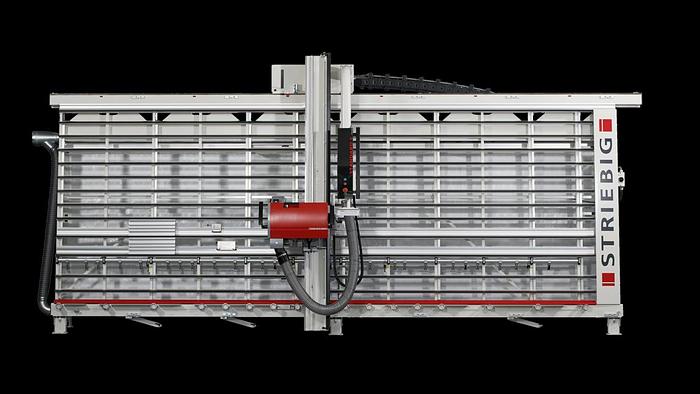

STANDARD S TRK2
With automatically yielding aluminium slatted frame.
The legend lives on, the name is a pledge
The STANDARD S adds another chapter to the STRIEBIG success story. Highest quality of the processed materials as well as easy handling are guaranteed with the STANDARD S.

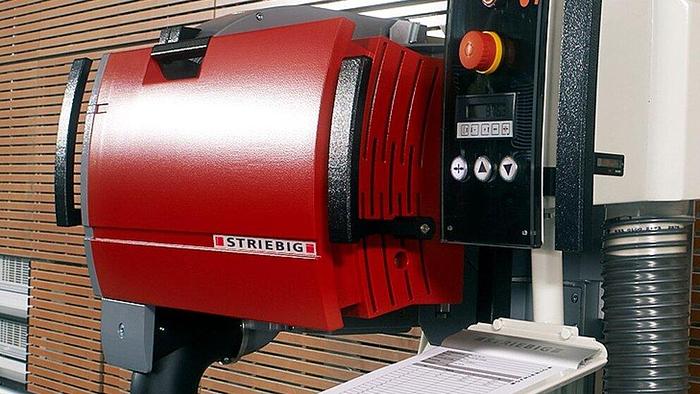

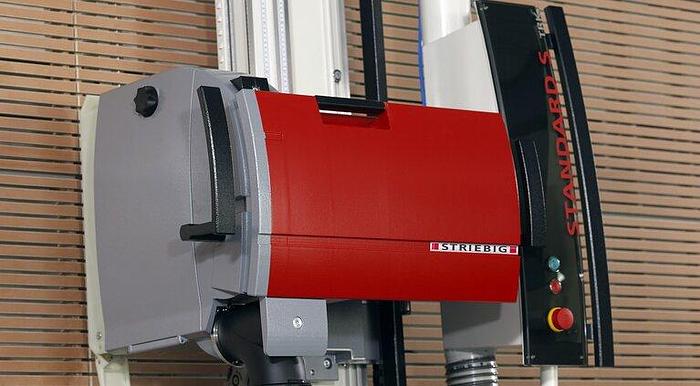

Sägeaggregat und Papierhalter der vertikalen Säge Standard S
Versatility meets pedigree
With the STANDARD S we are opening up a new dimension to the benefits for hand-guided sawing.
Two versions, a Comfort package with extended basic configuration and over 20 additional options and accessory components take the STANDARD S to a new level.
vertikale Säge Aluminium mit Kleinteilauflage Standard S TRK2
Precision thanks to stability
Self-supporting, welded and rigid, the saw frame is the heart of every STRIEBIG panel saw.
Upper guide rail, central support and roller support are perfectly parallel to each other. This guarantees you many years of cutting precision and a high-level of investment security.

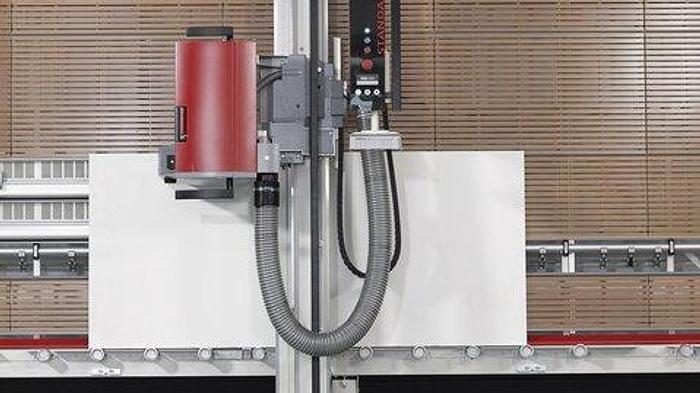

vertikale Säge mit Motorlaufwagen
Comfort package
The recommended Comfort equipment (optional)
Pneumatic clamping of the motor carriage
Digital measuring system DMS-Y, incl. fine adjustment.
Pneumatically braked support rollers

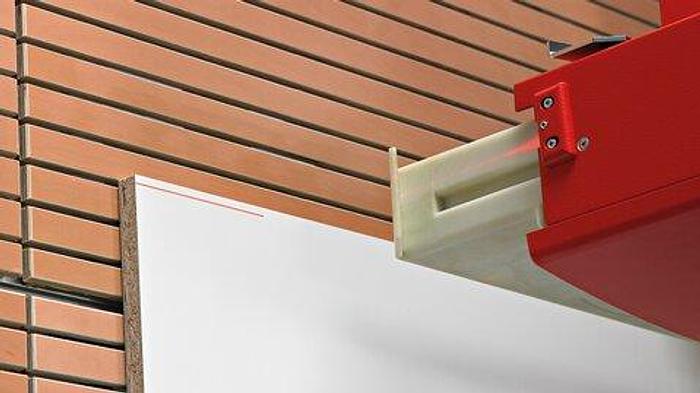

Laser-supported display of the horizontal cut
Specifications
Manufacturer | Striebig |
Condition | New |
Weight of the saw | approx. 1.100 kg |
Cutting depth | 80 mm |
Saw motor power | 5.5 kW (7.5 HP) |
Saw blade diameter | 300 mm |
Saw blade bore | 30 mm *1 |
Emission sound pressure level at the workplace lpa | 83 dB *2 |
Saw blade speed | 4800 rpm |
1 extraction connection | ø 140 mm |
Compressed air connection | 6-10 bar *3 |
Wattage | 7.3 kW |
Mains connection | 3 x 400 V / 50 Hz |
