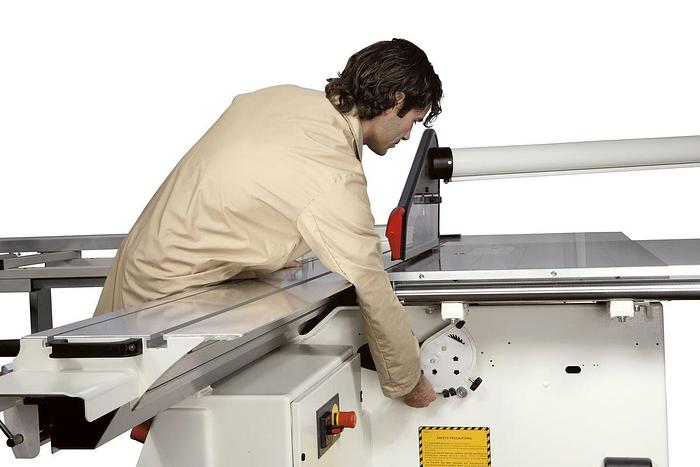

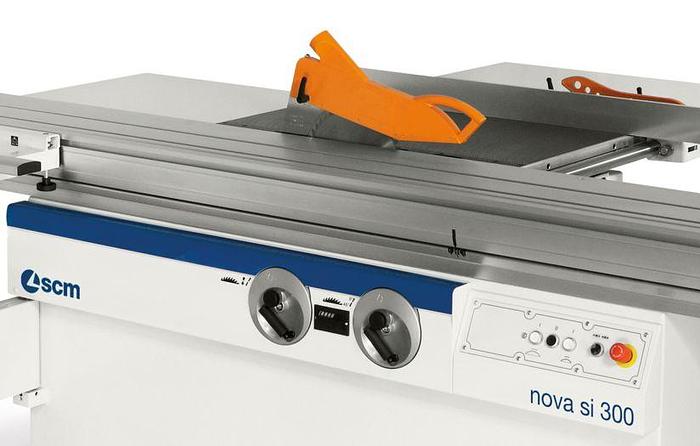

SCM Group Nova SI 400 - 3 Phase 10.5’ Programable Sliding Table Saw

SCM Group Nova SI 400 - 3 Phase 10.5’ Programable Sliding Table Saw

$13,985 (USD)

orCall 239-770-4474

Description

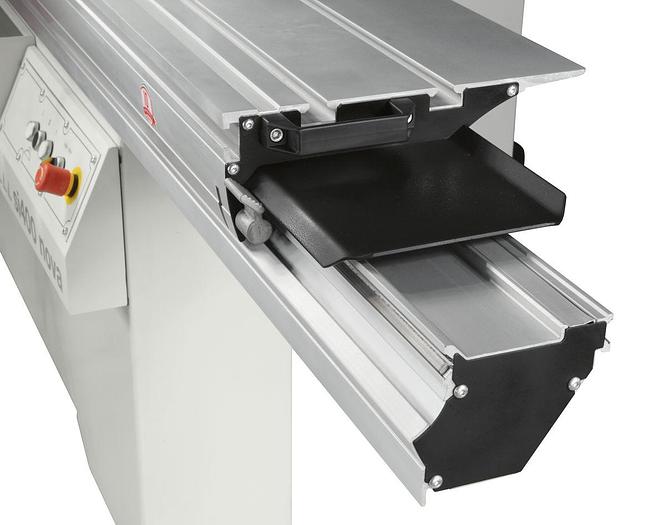

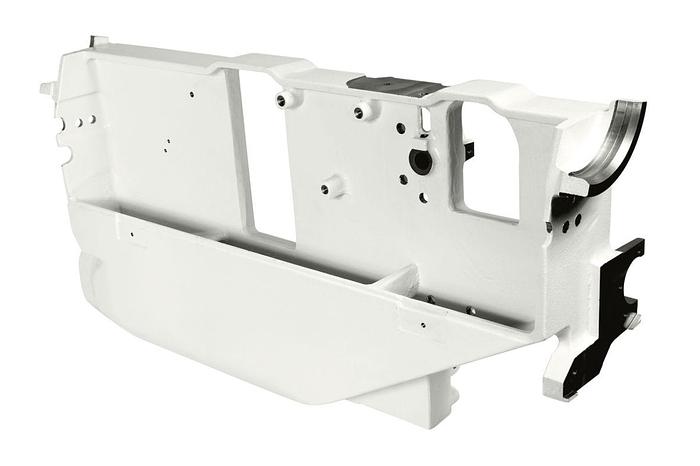

Programmed or manual circular saws with 400 mm blade. Guaranteed quality at your finger tips. Advantages Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts. Sliding carriage: smooth sliding and a solid work surface. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an  exclusive method of mechanical fixing. Manual movements: always user friendly and precise. Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission. Every minimum handwheel movement corresponds to a precise blade adjustment. Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.

Specifications

ManufacturerSCM
ConditionNew
Nova si 400
Max. saw blade diameter with mounted scorer400 / 16 mm / inches
Maximum saw blade projection from table to 90°/45°140/97 5.5/3.8 mm / inches
Cutting width on rip fence (Rip capacity)1270 / 50 mm / inches
Max squaring stroke of sliding table saw3200 / 126 mm / inches
Three-phase motor11 Hp
Indipendent scoring motor1 Hp
Blade tilt0 - 45 degrees
