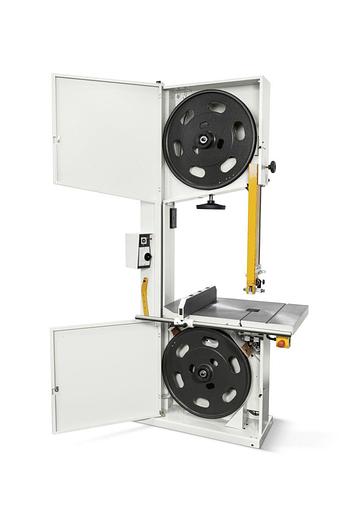

MiniMax S540P- Single Phase Bandsaw

MiniMax S540P- Single Phase Bandsaw

$6,395 (USD)

orCall 239-770-4474

Description

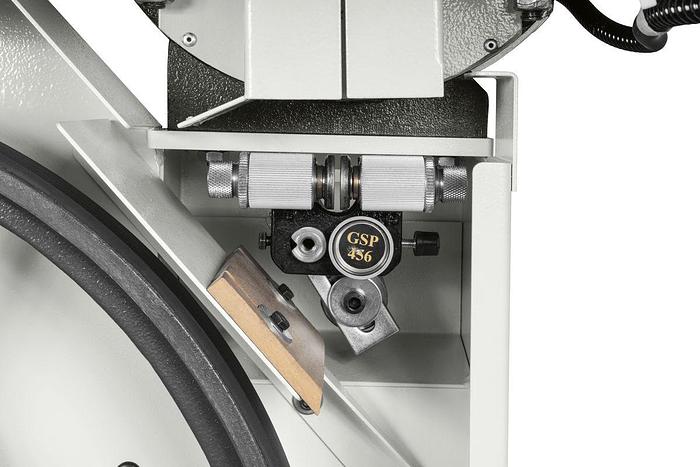

PROFESSIONAL SERIES Massive, high-precision, professional band saws for serious woodworkers and production shops. The S 540P is the big brother of the S440p. For those looking for single-phase power, but with a larger throat and even more resaw capacity, this is the machine for you. With all of the features of its smaller brother, this bandsaw will resaw up to 20” of material. Want to make your own veneer?  Bring it on! Advantages Solidity and sturdiness Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings. Safety first Total safety machining with telescopic protections with rackwork to the blade. Perfect results A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
Show All

Specifications

ManufacturerMiniMax
ConditionNew
Flywheels DiameterS 440P - 440 (17") - mm (inches); S 540P - 540 (21") - mm (inches); S 640P - 640 (25") - mm (inches); S 740P - 740 (29") - mm (inches); S 840P - 840 (33") - mm (inches); S 940P - 940 (37") - mm (inches)
Flywheel WidthS 440P - 33 - mm; S 540P - 38 - mm; S 640P - 38 - mm; S 740P - 40 - mm; S 840P - 45 - mm; S 940P - 54 - mm
Three-Phase MotorS 440P - - - kW Hp; S 540P - - - kW Hp; S 640P - 6.7 Kw(9 Hp) - kW Hp; S 740P - 5 Kw(6.6 Hp) - kW Hp; S 840P - 6.7 Kw(9 Hp) - kW Hp; S 940P - 6.7 Kw(9 Hp) - kW Hp
Single-Phase MotorS 440P - 3.6 Kw(4.8 Hp) - kW Hp; S 540P - 3.6 Kw(4.8 Hp) - kW Hp; S 640P - 3.6 Kw(4.8 Hp) - kW Hp; S 740P - - - kW Hp; S 840P - - - kW Hp; S 940P - - - kW Hp
Cutting HeightS 440P - 440 (17") - mm (inches); S 540P - 500 (20") - mm (inches); S 640P - 600 (24") - mm (inches); S 740P - 450 (18") - mm (inches); S 840P - 540 (21") - mm (inches); S 940P - 560 (22") - mm (inches)
Cutting WidthS 440P - 425 (16.5") - mm; S 540P - 520 (20.5") - mm; S 640P - 620 (24.4") - mm; S 740P - 720 (28.3") - mm; S 840P - 820 (32.2") - mm; S 940P - 920 (36.2") - mm
Table SizeS 440P - 420 x 578(16.5 x 22.75") - mm (inches); S 540P - 520 x 720(20.5 x 28.34") - mm (inches); S 640P - 600 x 885(24 x 34.8") - mm (inches); S 740P - 710 x 1000(27.9 x 39.3") - mm (inches); S 840P - 820 x 1160(32.3 x 45.7") - mm (inches); S 940P - 820 x 1160(32.3 x 45.7") - mm (inches)
Table TiltingS 440P - 0° - 45° - Degrees °; S 540P - 0° - 45° - Degrees °; S 640P - 0° - 45° - Degrees °; S 740P - 0° - 45° - Degrees °; S 840P - 0° - 45° - Degrees °; S 940P - 0° - 45° - Degrees °
Blade Length MaxS 440P - 3950 (155") - mm (inches); S 540P - 4560 (179") - mm (inches); S 640P - 5220 (205") - mm (inches); S 740P - 5420 (213") - mm (inches); S 840P - 6110 (240") - mm (inches); S 940P - 6710 (263.75") - mm (inches)
Blade Width Min/MaxS 440P - .25 - 1" - inches; S 540P - .25 - 1.25" - inches; S 640P - .25 - 1.5" - inches; S 740P - .37 - 2" - inches; S 840P - .37 - 2" - inches; S 940P - .5 - 2" - inches
Dust PortsS 440P - 2x 120mm - mm; S 540P - 2x 120mm - mm; S 640P - 2x 120mm - mm; S 740P - 2x 120mm - mm; S 840P - 2x 140mm - mm; S 940P - 2x 140mm - mm
Overall DimensionsS 440P - 830 x 670 x 1980 - mm; S 540P - 940 x 790 x 2150 - mm; S 640P - 740 x 1210 x 2390 - mm; S 740P - 1180 x 720 x 2430 - mm; S 840P - 1410 x 820 x 2650 - mm; S 940P - 1550 x 920 x 2860 - mm
Net WeightS 440P - 200 (440) - Kg (lbs.); S 540P - 250 (550) - Kg (lbs.); S 640P - 340 (750) - Kg (lbs.); S 740P - 450 (990) - Kg (lbs.); S 840P - 610 (1342) - Kg (lbs.); S 940P - 720 (1584) - Kg (lbs.)
