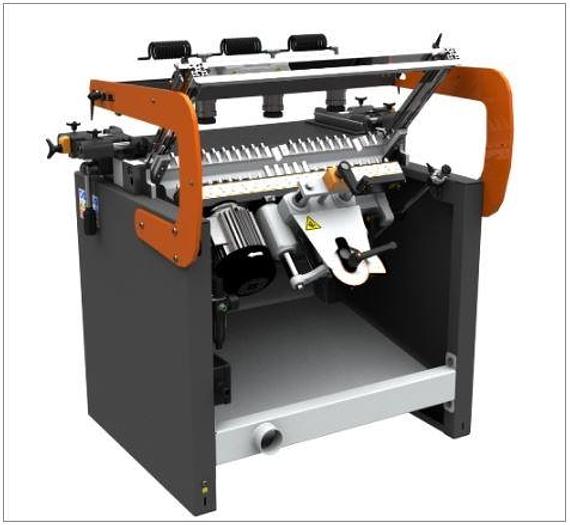

MAGGI System 29 Construction/Line Borer

MAGGI System 29 Construction/Line Borer

$10,950 (USD)

Description

The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout. 0 to 2.5" adjustable drilling depth with patented spiral setting device. (3) patented quick release material clamps with auto-setting to firmly hold material to table. Powerful 2 HP motor. 47" x 13" cast iron table. Side fences with mechanical digital readout for quick and accurate setting. 120" line boring fence with (4) stops. Foot actuated pneumatic clamps and drill cycle. Includes: Magnetic Starter with overload protection and (29) quick change chucks. $399 Flat Rate Shipping in the Continental United States

Specifications

ManufacturerMAGGI
ConditionNew
Dust outlet3"
Voltage230V 3-Phase
Net weight705 lbs.
Dimensions59.3" x 37.8" x 50" Tall.
Crated dimensions59.8" x 37.4" x 40.5" Tall.
Crated weight815 lbs.
NoteAdditional charges will apply for residential or liftgate deliveries.
