SCM Group Class SI 350 - 3 Phase 10.5’ Sliding Table Saw
SCM Group Class SI 350 - 3 Phase 10.5’ Sliding Table Saw
$20,995 (USD)
orCall 239-770-4474
Description
High construction quality for reliability and safe performance.
Advantages

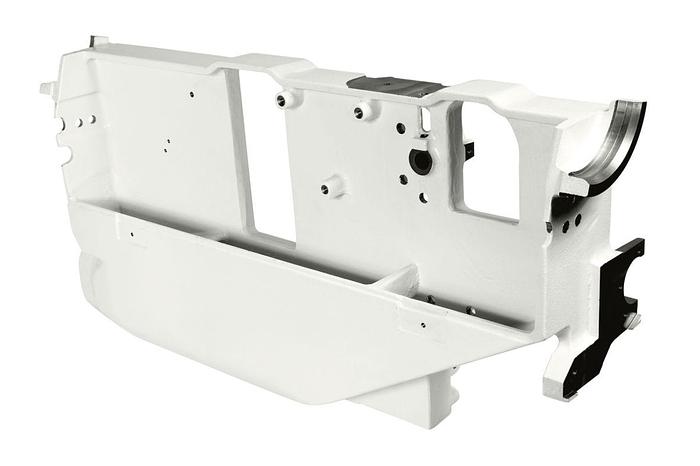

Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.

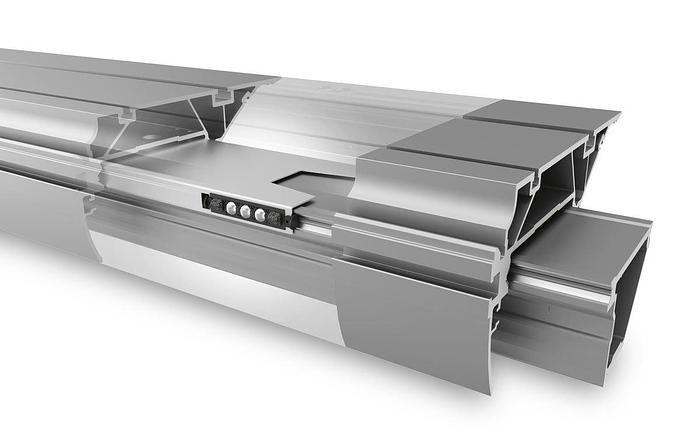

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).

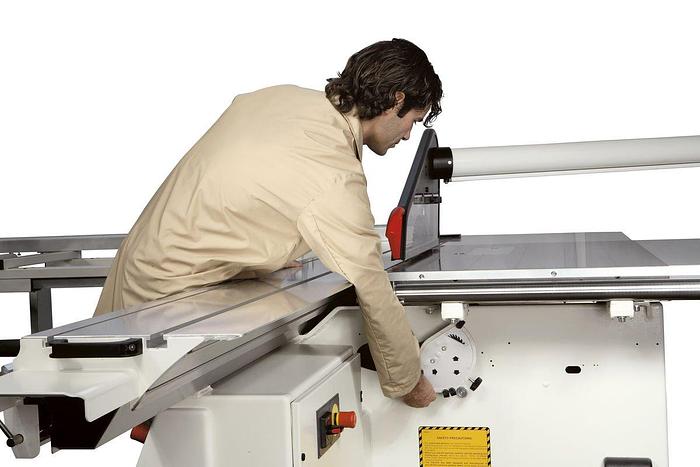

Manual movements: always user friendly and precise. Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission. Every minimum handwheel movement corresponds to a precise blade adjustment.
Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.
Specifications
Manufacturer | SCM |
Condition | New |
Class si 350 | |
Max. saw blade diameter with mounted scorer | 350 / 14 mm / inches |
Maximum saw blade projection from table to 90°/45° | 118/81 4.64/3.18 mm / inches |
Cutting width on rip fence (Rip capacity) | 1270 / 50 mm / inches |
Max. squaring stroke of sliding table saw | 3200 / 126 mm / inches |
Three-phase motor | 11 Hp |
