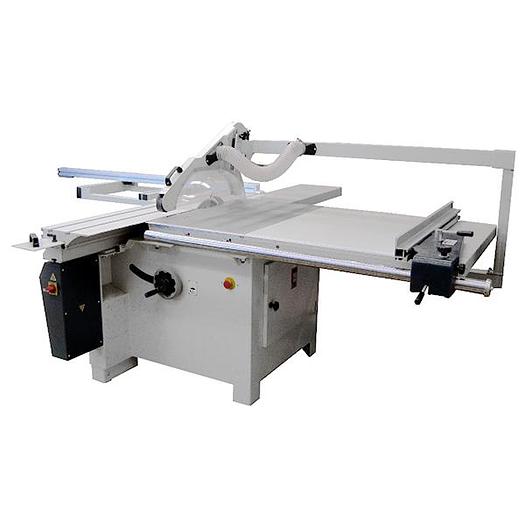

Cantek P30 5′ Sliding Table Saw (1PH/3PH)

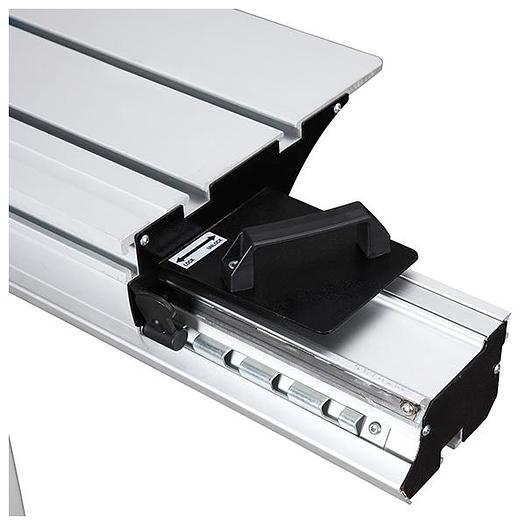

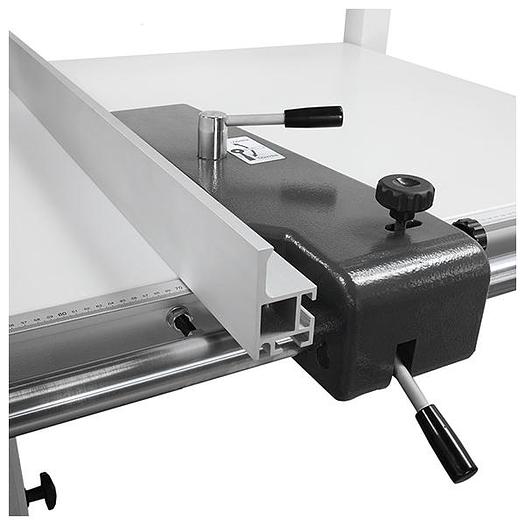

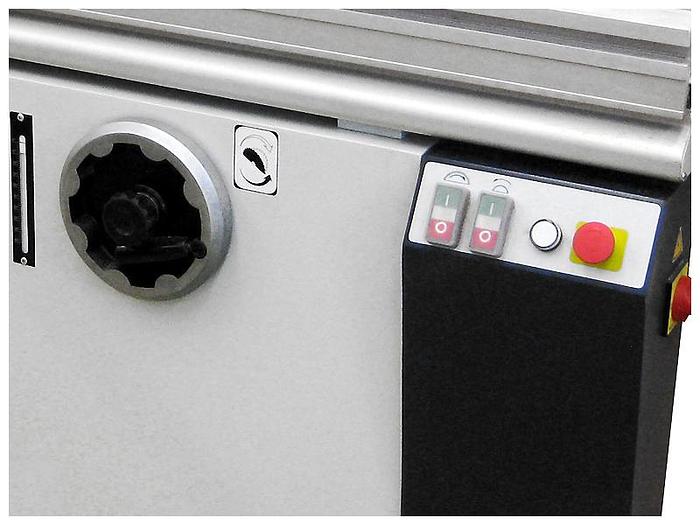

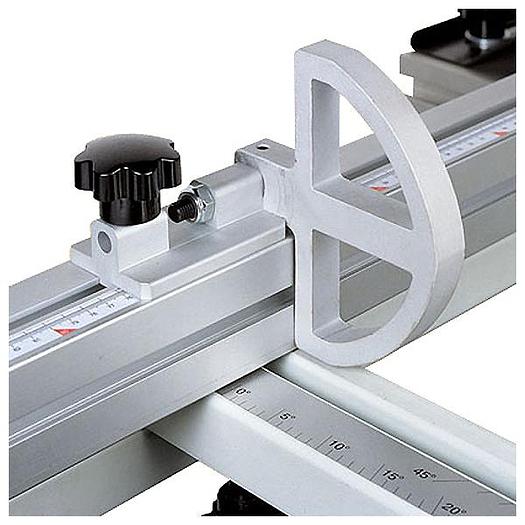

Powerful features in a small footprint sliding panel saw. The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements.  The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips.  It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP).   The blade height and tilt is manually adjusted by means of individual handwheels.  The angle of the blade is displayed by a linear scale for added operator convenience.   The rip fence runs on a round hardened rail and is manually adjusted up to 51”.  Equipped with a crosscut miter fence and (2) flip stops. Why Cantek P30 5′ Sliding Table Saw? Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement Powerful 5 HP main motor with ¾ HP scoring motor Heavy duty cast-iron rip fence with 51” cutting capacity Aluminum crosscut miter fence with (2) flip stops Manual rise/fall the main saw blade Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel Overarm blade guard with build in dust port Solid cast iron main table which is ground and polished Heavy-duty outrigger for strong support of workpiece during cutting operations Key Advantages Solid rip fence with manual fine adjustment and locking lever Easy to access external scoring adjustment Extension table at side and back of main table Optional Equipment Included: Eccentric hold down clamp CE Overarm Guard with Dust Port Wedge for Solid Wood Ripping SPECS Sliding table dimension: 63″ x 12.4″ 1600 x 315mm Cast Iron table: 21 ½” x 35 ¼” 548x896mm Extension table (rear): 18″ x 17 ½” 470x896mm Extension table (front): 12 ½” x 32 ½” 320x830mm Table size: 39 ½” x 68″ 1018x1726mm Main saw blade (Max.): 12″ 305mm Main saw bore: 30mm Max. cutting height at 90° (355mm): 3.54” 90mm Max. cutting height at 45° (355mm): 2.48” 63mm Main motor power: 5 HP Main blade speed: 4000 RPM Scoring saw blade: 120mm Scoring saw blade bore: 20mm Scoring blade motor power(optional): 3/4 HP Scoring blade speed: 8000 RPM Cutting width – ripping: 51” 1300mm Cutting width adjustment: Manual Crosscutting width (Maximum): 134.6” 3420mm Main saw blade tilting adjustment: Manual (0°~ 45°) Main saw height adjustment: Manual Scoring saw height adjustment: Manual Saw guard: CE Guard Included Dust collection ports: (1) 4” / (1) 2.3” (1) 100mm / (1) 60mm Machine weight: 984 lbs 447 kgs Shipping weight: 1151 lbs 523 kgs Shipping dimensions: 83” x 46” x 44” 2110 x 1150 x 1160mm Electrics: 230/1/60 = 34.9 Full Load Amps 230/3/60 = 18.4 Full Load Amps 575/3/60 = 7.4 Full Load Amps
