Cantek P305 10′ Sliding Table Saw (3PH)
Cantek P305 10′ Sliding Table Saw (3PH)
$9,700 (USD)
orCall 239-770-4474
Description
Powerful features in a small footprint sliding panel saw.
The Cantek P305 10’ Sliding Table Saw is built for the budget conscious user that still wants precision and accuracy. The P305 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (1 HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a extendable crosscut miter fence and flip stops.
Why Cantek P30 5′ Sliding Table Saw?

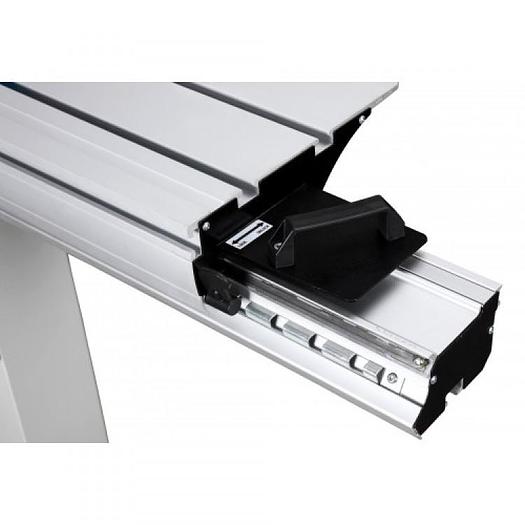

Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
Powerful 5 HP main motor with 1 HP scoring motor

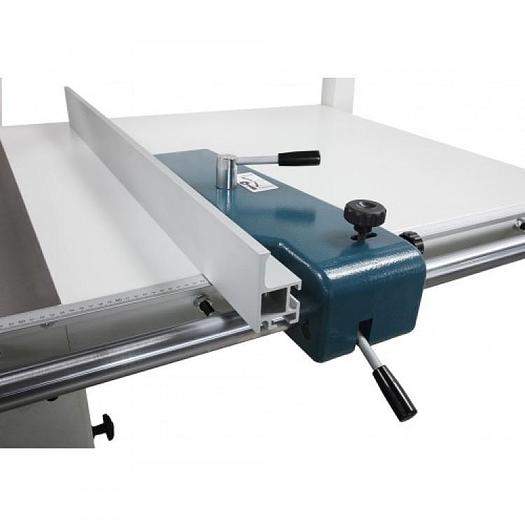

Heavy duty cast-iron rip fence with 51” cutting capacity

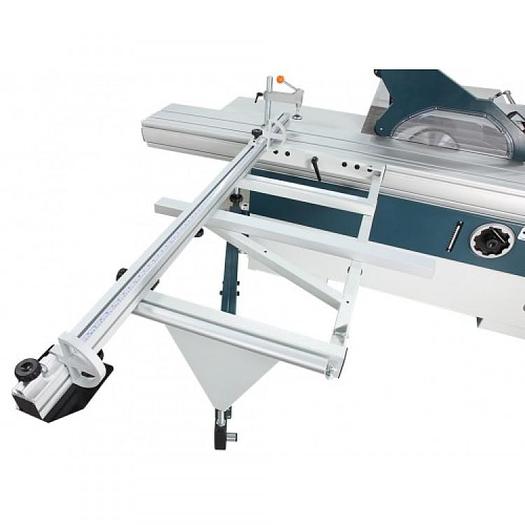

Aluminum crosscut miter fence with (2) flip stops and dual inch/metric scales
Manual rise/fall the main saw blade
Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

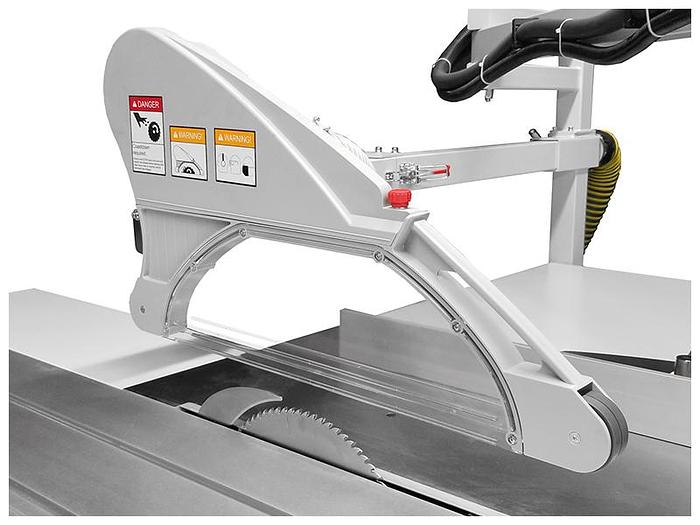

Overarm blade guard with build in dust port
Key Advantages
Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Solid rip fence with manual fine adjustment and locking lever
Easy to access external scoring adjustment
Convenient eccentric manual scoring adjustment
Extension table at side and back of main table
Equipped with set of main and scoring blades
SPECS
Specifications
Manufacturer | Cantek |
Condition | New |
Cast iron fixed table dimension | 1500 x 1726mm 59″ x 68″ |
Sliding table dimension | 3200 x 360mm 126” x 14″ |
Max. main saw blade diameter | 305 mm 12” |
Main saw bore | 30mm |
Max. cutting height with blade at 90o | 90 mm 3.54” |
Max. cutting height with blade at 45o | 63 mm 2.48” |
Main motor power | 5 HP |
Main blade speed | 4000 RPM |
Scoring saw blade | 120 mm |
Scoring saw blade bore | 20 mm |
Scoring blade motor power | 1 HP |
Scoring blade speed | 8000 RPM |
Blade tilt | 0 – 45o |
Max. ripping width | 1300mm 51” |
Dust collection ports | (1) 100mm / (1) 60mm (1) 4” / (1) 2.3” |
Machine weight | 548 kgs 1206 lbs. |
Machine shipping weight | 652 kgs 1435 lbs. |
Machine shipping dimensions | 2110 x 1150 x 1120mm 83″ x 45 ½” x 44″ |
Sliding table weight | 80 kgs 176 lbs. |
Sliding table shipping weight | 103 kgs 227 lbs. |
Sliding table shipping dimensions | 3300 x 430 x 220mm 130″ x 17″ x 9″ |
Electrics | 230/1/60 = 36 Full Load Amps |
230/3/60 = 19.4 Full Load Amps | |
575/3/60 = 8 Full Load Amps | |
Included | Eccentric hold down clamp & wedge for solid wood ripping included |
