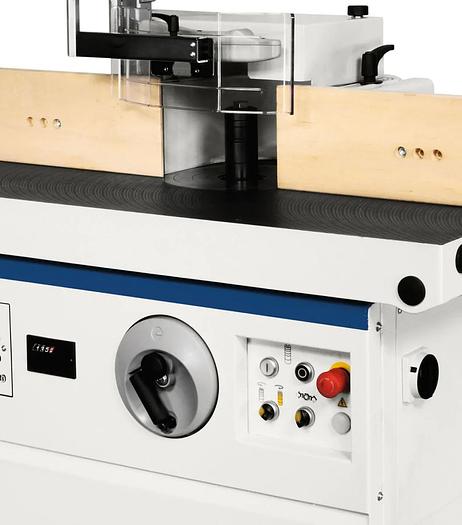

SCM Group NOVA TF 110 Fixed Spindle Shaper

SCM Group NOVA TF 110 Fixed Spindle Shaper

$10,975 (USD)

Description

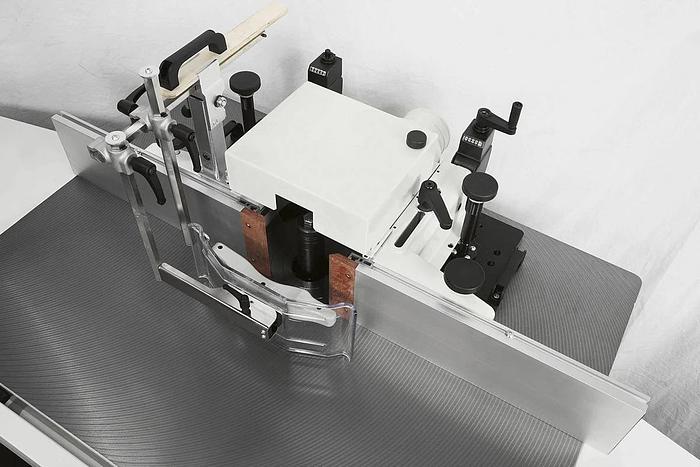

Guaranteed quality at your finger tips. Easy-to-use, productivity and efficency, flexibility. Advantages Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Specifications

ManufacturerSCM
ConditionNew
Nova tf 110
Max. useful spindle length140 / 5.5 mm / inches
Spindle speed (at 50 Hz)3000/4500/6000/7000/10000 rpm
Max. diameter of the profiling tool250 / 9.8 mm / inches
Max. tool diameter retractable under the table at 90°320 / 12.6 mm / inches
Max. diameter of the tenoning tool with spindle diam. 30-35 (40-50)300 / 11.8 mm / inches
Three-phase motor10 Hp
