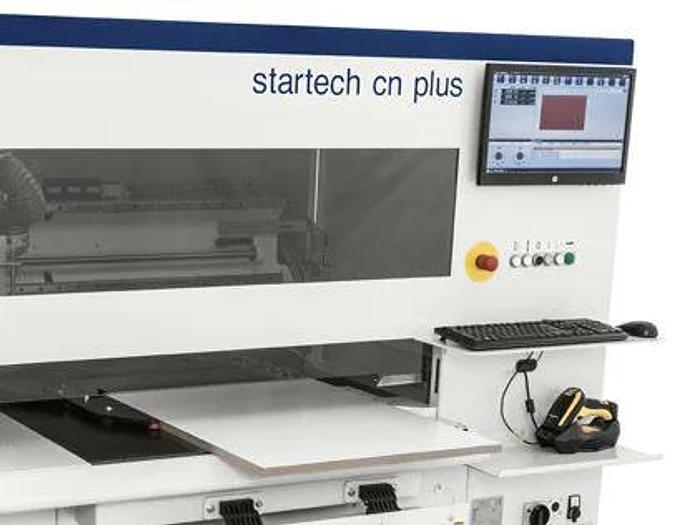

SCM Startech CN Plus

SCM Startech CN Plus

$69,975 (USD)

Description

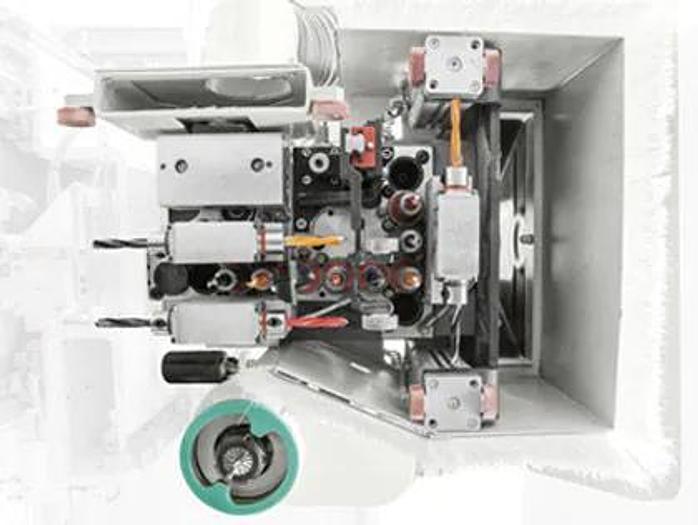

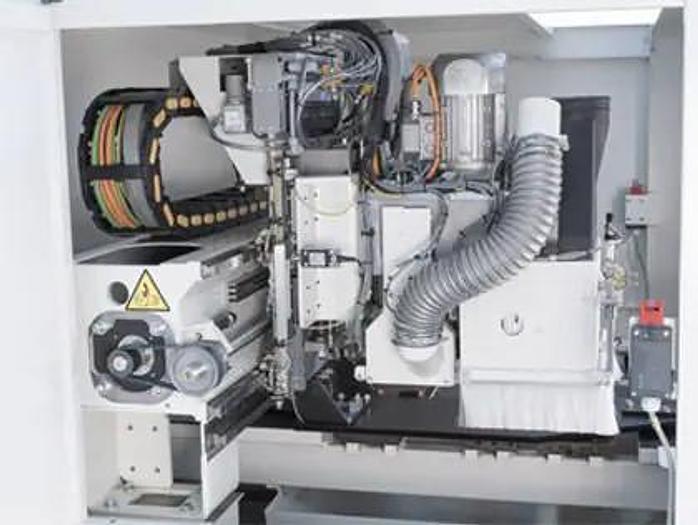

startech cn plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 8 independent vertical spindles, the 6 horizontal spindles, the blade in "X" . There is a machine version with router. No operator's intervention for the worktable and machine set-up according to the panel dimensions. Tooling and machining operations reduced to the minimum, with 40 m/min axes speed. With its 5 m2 overall dimensions, it can be installed in reduced spaces. Easy-to-use machine and for every investment capability. Advantages Effective: The operating unit above the panel allows a very precise and cleaned working. Furthermore any panel thickness imperfection is hidden inside the furniture (part not in sight). Maximum versatility: The machine version with routing unit with electrospindle 5.5 kW motor power is suitable for all machining. Totally automatic: thanks to the automatic side alignment device the panel is loaded, into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator. A "Maestro" at your disposal: 19" PC with integrated software. The SCM "Maestro cnc" software allows to create projects and geometrical drawings to be automatically converted in drilling-routing programs for the machine.

Specifications

ManufacturerSCM
ConditionNew
Max./min. panel dimensions in X-Y-Z3050x900x60 / 200x80x10 mm
Drilling/grooving working area40/40/10 m/min
Vertical spindles8 (5X-3Y) no.
Horizontal spindles6 (2+2X-2Y) no.
Blade, diameter/thicknesser125/6 mm
Spindles/blade rotating speed4200/5500 g/min
Electrospindle rotating speed18.000 g/min
Power15,2 (20,7 with electrospindle) KVA
FlexibleIDEAL SOLUTION FOR TAILORED PRODUCTIONS
PerformingTOP PERFORMANCE
CompactVERY REDUCED MACHINE OVERALL DIMENSIONS
SimpleAT EVERYBODY'S REACH
